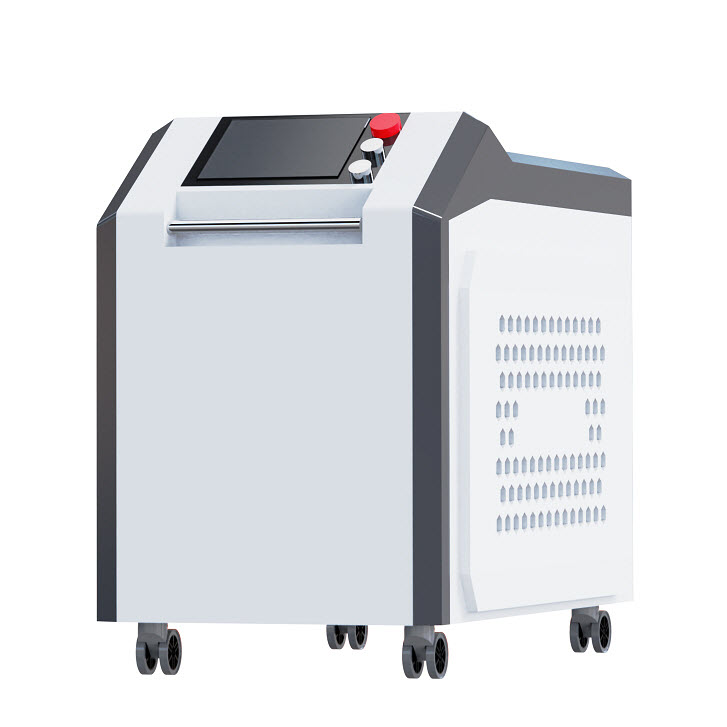

2000w 3000w Handheld Continuous Fiber Laser Paint Rust Cleaner for Metal
C03 series handheld continuous fiber laser cleaner is designed for efficient and safe removal of rust, paint, oxide layer and oil stains on various metal surfaces such as steel, iron, brass etc. Two power configurations of 2000W and 3000W are available to meet the laser surface treatment needs of different customers. The industrial fiber laser cleaner is equipped with an advanced water cooling system and uses industry-leading laser sources to ensure excellent performance and stability. It provides eight cleaning trajectory modes, which can be flexibly adjusted according to different applications to achieve the best cleaning effect. C03 is widely used in many fields such as automobiles, aircraft, railways, ships, stone processing, etc., providing an efficient, environmentally friendly, pollution-free, contact-free, low-energy consumption, and damage-free surface cleaning solution.
- • Wavelength: 1064±10nm
- • Cleaning speed: 10~80m²/h
- • Scanning width: 300~800mm
- • Working mode: continuous cleaning

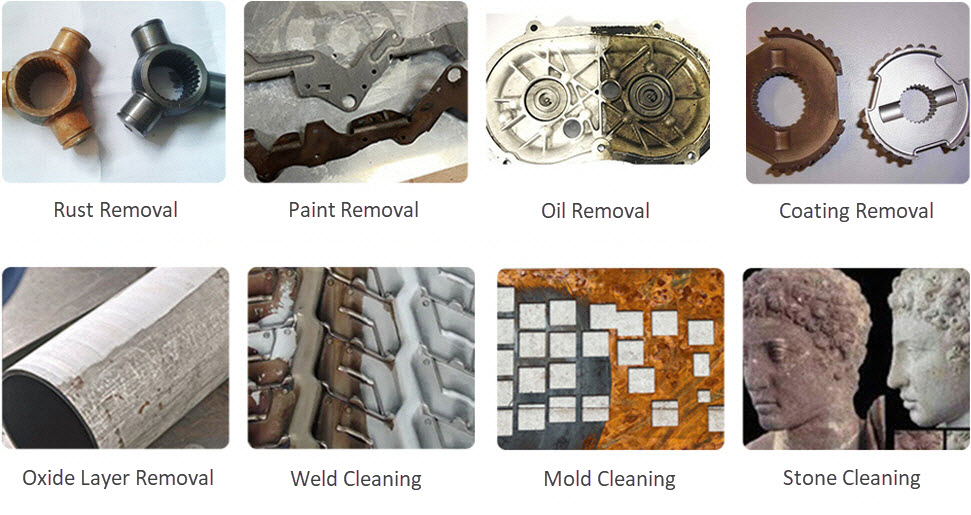

- • Application: remove rust, paint, oxide layer, oil stains etc. from metal, steel, stone...
- Information
- Specification
- Video
Item | C03-2000 | C03-3000 |
Laser source | Raycus/ Max | Raycus/ Max |
Wavelength | 1064±10nm | 1064±10nm |
Working mode | Continuous cleaning | Continuous cleaning |
Laser power | 2000W | 3000W |
Fiber cable length | 10m | 10m |
Cleaning speed | 10~60m²/h | 20~80m²/h |
Cooling method | Water cooling | Water cooling |
Rated voltage | 220V | 380V |
Working TEMP. | 5~40℃ | 5~40℃ |
Machine weight | About 120kg | About 120kg |
Cleaning gun: collimating focal length | D20*3.5 F 50mm | D20*3.5 F 50mm |
Cleaning gun: focusing focal length | D20 F 400mm/ D20 F 800mm | D20 F 400mm/ D20 F 800mm |
Cleaning gun: scanning width | 300~800mm | 300~800mm |
Cleaning gun: weight | About 1kg | About 1kg |
Optimum surface cleaning solution: NITRATEK C03 series industrial continuous fiber laser cleaner is available in two power versions, 2000W and 3000W, suitable for efficient removal of rust, paint, coatings, oxide layers, oil pollution and etc. on various hard surfaces such as metals, alloys and composite materials. C03 series high power fibre laser cleaner is carefully designed to achieve fast and thorough rust removal processes. While ensuring cleaning efficiency, it ensures that the integrity of the substrate is not affected. It offers an ideal solution for industrial surface treatment.
Fiber laser sources: C03 handheld laser cleaning machine is equipped with a continuous fiber laser from internationally renowned brands, and can be optionally equipped with Raycus or Max lasers to ensure excellent output beam quality, stable and long-lasting operation, and outstanding overall performance, providing a solid guarantee for efficient and precise cleaning.
Intelligent water cooling method: equipped with a 13L large-capacity industrial chiller, it effectively prevents the equipment from overheating and ensures the stable performance of the high-power handheld laser rust cleaner during long-term operation. At the same time, the system integrates an adaptive hot and cold dual-temperature control cleaning head, and adopts a split cooling design for the laser source to further improve the heat dissipation efficiency, ensure continuous and stable laser output, and meet the needs of high-intensity industrial cleaning.

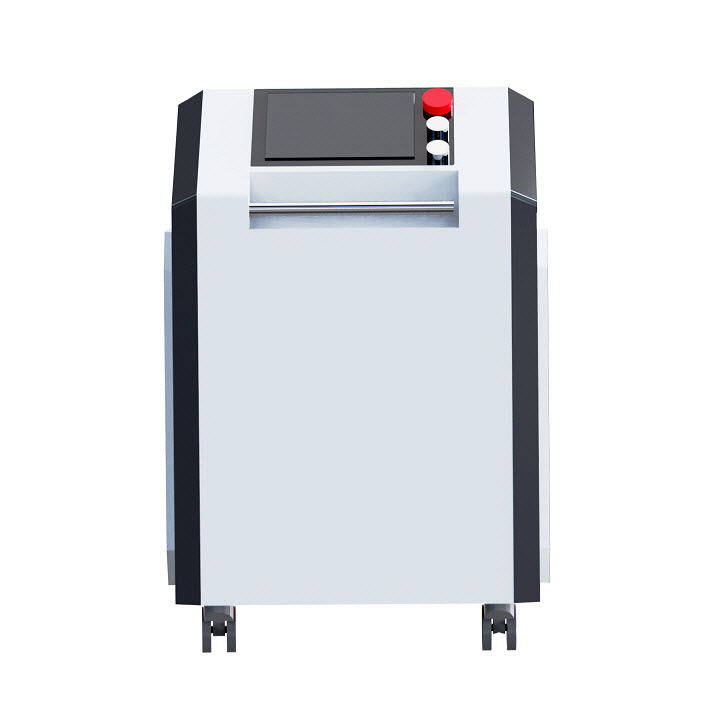

Intuitive and user-friendly operating system: the industrial fiber laser cleaner is equipped with an intelligent operating system, and the operator can easily complete various parameter adjustments and mode switching through an intuitive touch screen. The interface design is concise and clear, and the functional layout is clear. Even first-time users can quickly master the operation essentials and achieve efficient and accurate surface cleaning operations.
Scientific design and layout: the internal structure design of the equipment has been carefully planned, and each component is selected and laid out based on scientific calculations. The line direction is clear and orderly, and the markings are clear, which not only improves the stability of the overall operation, but also greatly facilitates the subsequent maintenance and repair work.

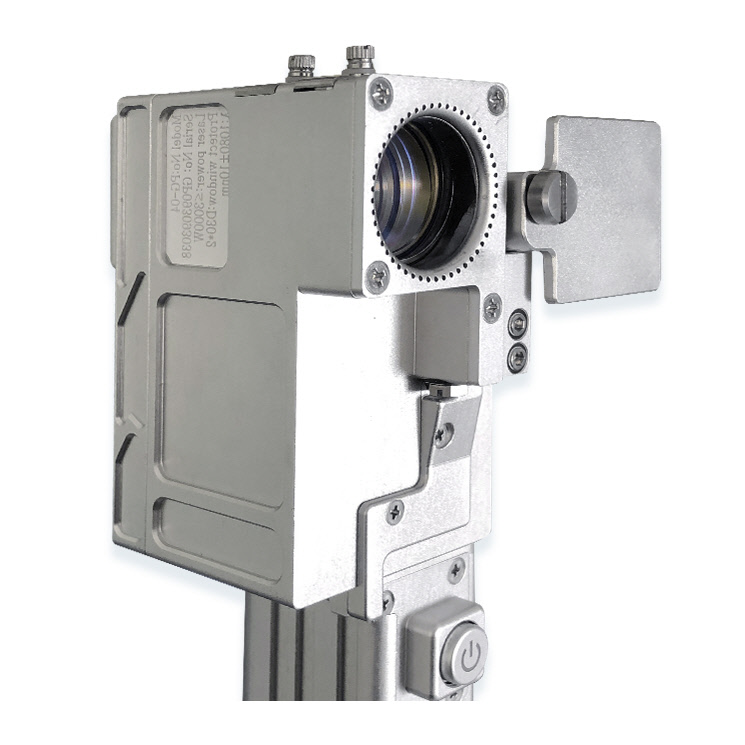

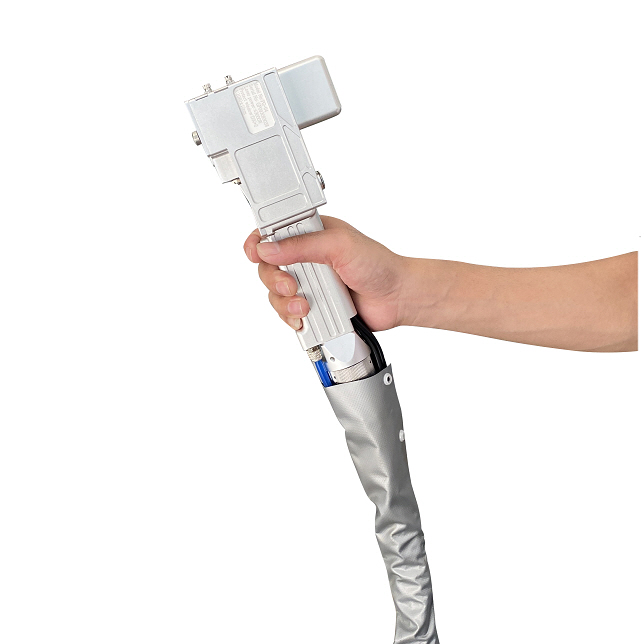

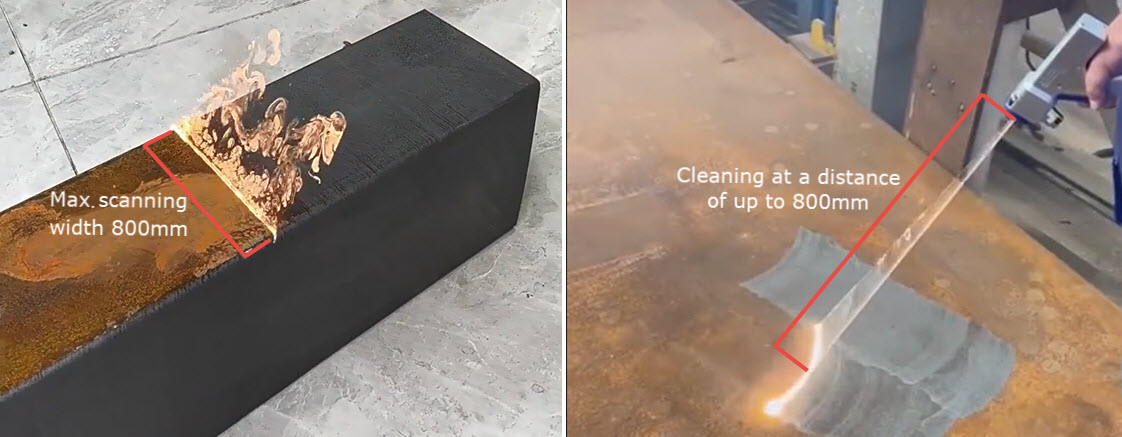

Advanced & innovative laser cleaning gun: the laser rust & paint cleaner adopts a new upgraded laser cleaning gun. The whole machine is lightweight and user-friendly, and it is still comfortable and labor-saving to hold for a long time. In swing mode, the maximum scanning width can reach 800mm, which greatly improves the working efficiency. The cleaner also supports intelligent automatic scanning function, which can accurately identify rusty areas and perform fully automatic cleaning without manual intervention. It provides multiple optional scanning trajectory modes such as straight line, wave line, circle etc., and also has long-distance cleaning capacity of up to 800mm. The entire cleaning process is efficient and stable, and can adapt to a variety of complex working conditions.
No chemical, No pollution, No damage to surface: the laser cleaning process does not require any chemical reagents or cleaning fluids, completely avoiding pollution to the environment, and truly achieving green cleaning. During the entire cleaning process, there is no physical contact between the laser cleaner and the object being cleaned, which effectively protects the surface of the raw material from damage and maintains its original characteristics and integrity. If you are looking for an efficient and safe surface cleaning method to remove rust, paint, etc., this industrial handheld fiber laser cleaning machine can provide you with an efficient and economical cleaning solution. Welcome your inquiry.
Fiber laser cleaner represents the forefront of modern cleaning technology. It cleverly combines multiple advantages such as high efficiency, environmental friendliness, zero pollution and low energy consumption to become a high-end surface treatment solution.
This innovative technology is widely used in many industries, including but not limited to manufacturing, maintenance, mold processing, cultural relics restoration and stone processing, showing its excellent adaptability and flexibility. The continuous laser cleaning machine adopts a non-contact cleaning method, which means that there is no need to physically contact the target surface when performing cleaning tasks. This feature not only greatly improves the cleaning efficiency, but also effectively avoids any potential damage to the material itself, ensuring the integrity and functionality of the workpiece. This is especially important for applications that require high precision and surface quality.
C03 fiber laser rust & paint cleaner is gradually becoming an indispensable tool for modern industrial surface treatment. It not only promotes the innovation of traditional cleaning methods, but also provides strong support for green manufacturing and sustainable development in various industries.
