Mini Handheld Fiber Laser Marking System

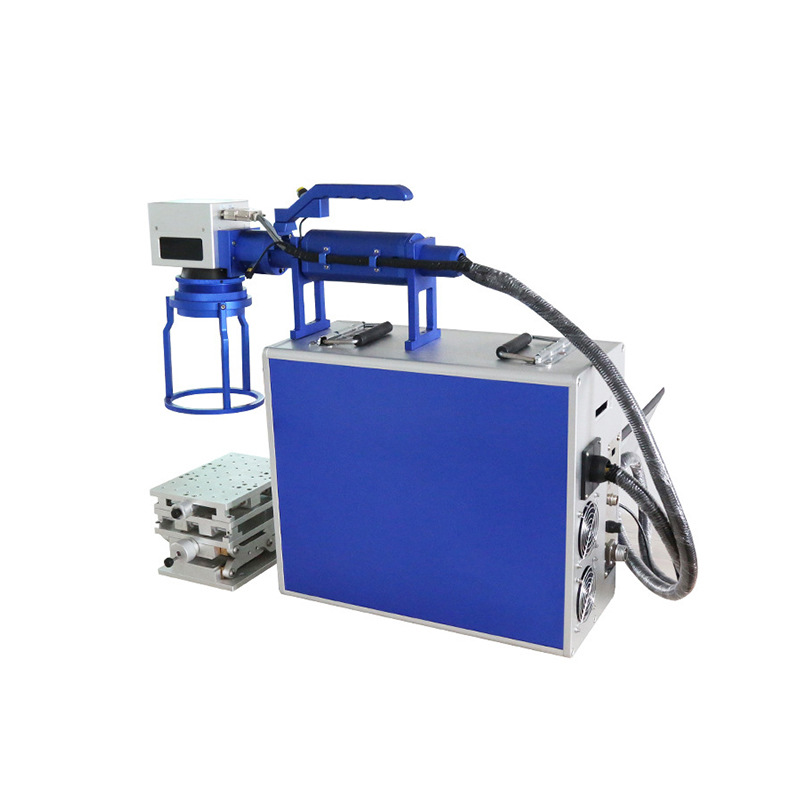

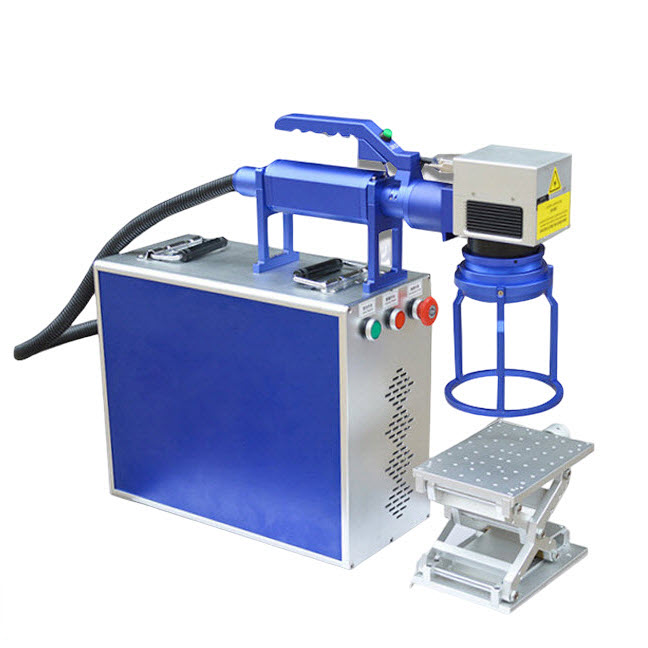

M05 series mini handheld fiber laser marking machine combines practicality and convenience, and is designed for efficient marking needs. The whole machine adopts a lightweight aluminum alloy structure, which is both durable and has good heat dissipation performance. The body is compact and easy to move, and it can adapt to a variety of working environments. The equipment is equipped with a self-developed control motherboard and marking software. The operation is intuitive and easy to maintain. It supports personalized function customization to meet diverse application needs. W05 can be directly connected to any office computer for graphic design and marking operations, eliminating the tedious steps of file transfer and format conversion, and greatly improving work efficiency. Its handheld laser head design is particularly flexible, especially suitable for large or difficult to carry workpieces, realizing free operation of on-site marking, and is an ideal choice with great practical value in the field of industrial marking.

  • • Laser power: 20w, 30w, 50w
  • • Beam diameter: <8mm
  • • Marking area: 100*100~500*500mm
  • • Minimum line width: 0.01~0.05mm
  • • Processed materials: stainless steel, aluminum alloy, copper, hard plastic, etc.
  • Information
  • Specification
  • Video
ItemM05-20M05-30M05-50
Supply voltage110v/220v, 50/60Hz110v/220v, 50/60Hz110v/220v, 50/60Hz
Overall power consumption<500w<500w<500w
Cooling methodAir coolingAir coolingAir cooling
Laser output power20w30w50w
Laser light sourceJPT/ MAX/ RaycusJPT/ MAX/ RaycusJPT/ MAX/ Raycus
Laser wavelength1064nm1064nm1064nm
Beam diameter<8mm<8mm<8mm
Marking area100*100~200*200mm100*100~300*300mm100*100~500*500mm
Minimum line width0.01~0.05mm0.01~0.05mm0.01~0.05mm
Minimum character0.3mm0.3mm0.3mm
Marking depth0.05~0.2mm0.05~1.2mm0.05~2mm
Max. marking speed7000mm/s7000mm/s7000mm/s
Cable length1.5m (cable length and plugs can be customized)1.5m (cable length and plugs can be customized)1.5m (cable length and plugs can be customized)
Working environment-10℃~40℃-10℃~40℃-10℃~40℃
WeightAbout 12kgAbout 12kgAbout 12kg


Integrated modular structure: W05 mini handheld fiber laser marking machine adopts an integrated modular structure design, and the operation logic is in line with the ergonomic concept, which greatly improves the convenience of use and the comfort of operation. Its innovative handheld laser head configuration gives the equipment extremely high spatial flexibility, especially suitable for on-site marking of large, heavy or difficult-to-move workpieces, truly realizing "on-demand marking", breaking through the space limitations of traditional fixed equipment.



Advanced fiber laser technology: the handheld laser marking system is equipped with the third-generation high-power fiber laser technology, with a photoelectric conversion efficiency of up to 60%, and has excellent energy utilization. The laser output is stable and the beam quality is excellent (M²<1.4). The spot diameter after focusing can be as small as 20 microns, and the divergence angle is only one-fourth of that of the semiconductor pump laser, which is significantly better than traditional solid laser marking equipment, and shows unparalleled detail expression in the field of precision marking.



High marking speed: with the high-speed scanning galvanometer system, W05 mini laser marker has achieved a qualitative leap in marking speed, which is more than four times higher than traditional YAG and DP semiconductor models, greatly shortening the processing cycle, effectively reducing labor and time costs, and is particularly suitable for mass production and high-paced industrial scenarios.

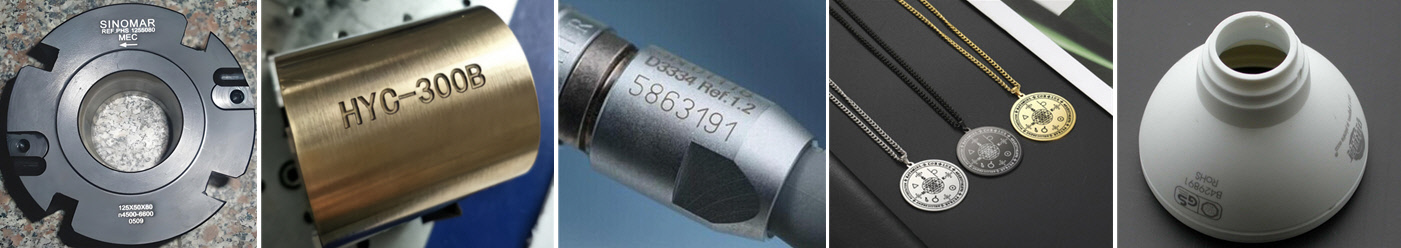

fiber laser marking effect


Energy-saving: the whole machine adopts a full air-cooling solution, without any consumables, easy operation and maintenance, and low daily use costs. The energy-saving design keeps the power consumption of the whole machine within 500W. Compared with traditional lamp-pumped or semiconductor laser equipment, it can save a lot of electricity expenses every year, and has both environmental protection and economic advantages. The marking process has no pollution emissions, and the generated marks are permanently clear and not easy to wear, which is suitable for application environments with strict requirements on the durability of the logo.



Equipped with JCZ marking software: in terms of the control system, W05 is equipped with JCZ professional-grade marking software platform, which has strong compatibility and supports CorelDRAW, AutoCAD, Photoshop and other mainstream graphics processing software export formats, such as PLT, PCX, DXF, BMP, etc., and has built-in SHX and TTF font libraries. The software also integrates functions such as automatic encoding, serial number generation, date printing, barcode and QR code recognition to meet diverse data management needs.



Compact design and long service life: the overall structure of the M05 mini handheld laser marking machine is compact, occupies a small area, and is easy to store and transport. The modular design makes subsequent maintenance more efficient and quick, and has a long service life. It can adapt to long-term stable operation in a variety of complex environments. It is an ideal industrial identification solution that combines high performance, low energy consumption, easy operation and strong adaptability.

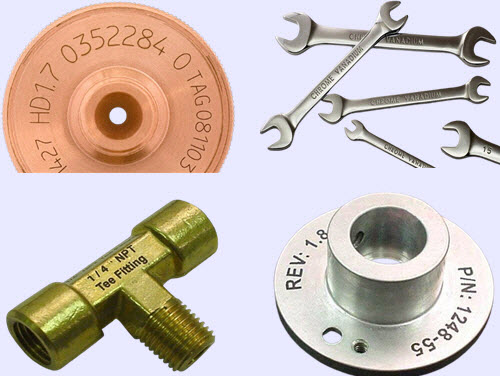

W05 series handheld mini fiber laser marking system is suitable for marking electronic components, metal tools, electrical equipment, daily necessities, sensor devices, automotive parts, decorative crafts, precision instruments, gift jewelry, medical equipment, high and low voltage electrical appliances, sanitary products and other industries. It is especially suitable for marking large or difficult to carry objects, such as heavy molds, large machinery and other equipment that is difficult to move on site, showing excellent flexibility and practicality.
