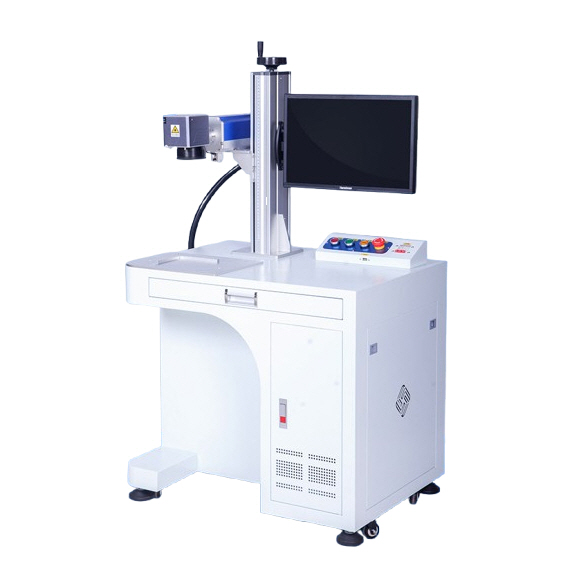

Desktop Fiber Laser Marking Machine for Metal

M01 desktop fiber laser marking machine achieves fast and accurate marking speed and ensures excellent beam quality by relying on efficient photoelectric conversion technology. The design fully reflects the humanized concept. The keyboard and mouse can be neatly stored in the drawer, which not only improves the convenience of operation, but also makes the work surface neater and more orderly. Our desktop laser marker has a wide range of applications and can efficiently mark various metal and non-metal materials. It is an ideal fiber laser marking equipment with flexibility and versatility in industrial production and commercial applications.

  • • Laser power: 20W, 30W, 50W
  • • Beam diameter: <8mm
  • • Marking area: 100*100~500*500mm
  • • Minimum line width: 0.01~0.05mm
  • • Processed materials: iron, copper, aluminum, gold, silver, PC, ABS, PVC...
  • Information
  • Specification
  • Video
ItemM01-20M01-30M01-50
Supply voltage110v/220v, 50/60Hz110v/220v, 50/60Hz110v/220v, 50/60Hz
Overall power consumption<500w<500w<500w
Cooling methodAir coolingAir coolingAir cooling
Laser output power20w30w50w
Laser light sourceMAX/ RaycusMAX/ RaycusMAX/ Raycus
Laser wavelength1064nm1064nm1064nm
Beam diameter<8mm<8mm<8mm
Marking area100*100~200*200mm100*100~300*300mm100*100~500*500mm
Minimum line width0.01~0.05mm0.01~0.05mm0.01~0.05mm
Minimum character0.3mm0.3mm0.3mm
Marking depth0.05~0.2mm0.05~1.2mm0.05~2mm
Max. marking speed7000mm/s7000mm/s7000mm/s
Cable length1.5m (cable length and plugs can be customized)1.5m (cable length and plugs can be customized)1.5m (cable length and plugs can be customized)
Working environment-10℃~40℃-10℃~40℃-10℃~40℃

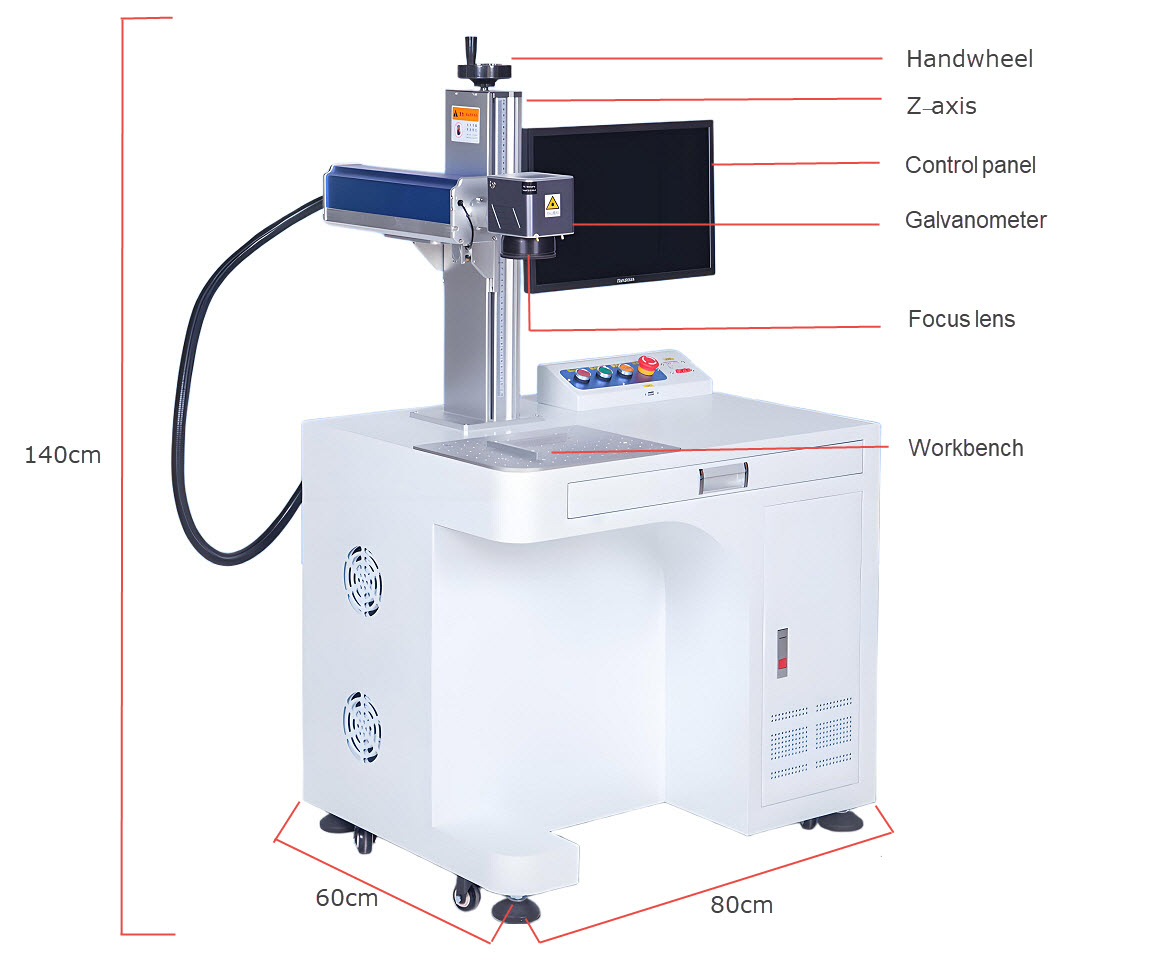

DimensionsAbout 80*60*140cm (L*W*H)About 80*60*140cm (L*W*H)About   80*60*140cm (L*W*H)
WeightAbout 75kgAbout 75kgAbout 75kg


• Extremely fast marking performance:

NITRATEK desktop fiber laser marking machine can run at a high speed which is up to 7000 mm per second, significantly improving processing efficiency. This high-speed feature enables the equipment to easily handle large-volume orders, helping users achieve efficient delivery and enhance customer satisfaction.


• Stable and long-lasting operation capability:

M01 series desktop fiber laser marker is designed for high-intensity, continuous production environments, with excellent stability and durability, which can maximize the time of uninterrupted operation, effectively improve overall production capacity, and help companies maintain their leading edge in the highly competitive market.



• Ultra-long service life:

The theoretical design life of the whole machine is up to 50,000 hours, with low failure rate and low maintenance requirements, which greatly reduces downtime and ensures a continuous and efficient production rhythm. It is an ideal choice for long-term investment for enterprises.



• Accurate marking performance:

Equipped with a high-performance scanning galvanometer system using internationally advanced technology, it ensures that each mark is clear, delicate and highly consistent, thereby comprehensively improving the professionalism and brand recognition of product identification.



• Energy-saving and efficient operation experience:

M01 desktop laser marker adopts energy-saving optimization design, which significantly reduces energy consumption while ensuring high-performance output, helps enterprises control operating costs, and promotes the implementation of green manufacturing concepts.



• Flexible marking range configuration:

The standard marking area is 150mm×150mm, which can be expanded to 500mm×500mm (customizable) at most, meeting the processing needs of workpieces of different sizes, adapting to diversified application scenarios, and broadening the boundaries of use.




• Humanized structural design:

The whole machine adopts an integrated compact layout, integrated display and control interface, intuitive and convenient operation, saving space while optimizing the workflow, and improving overall comfort and efficiency.



• Efficient air cooling solution:

Equipped with an optimized air cooling system, it not only reduces the frequency of daily maintenance, but also extends the service life of key components, ensuring that the equipment runs more stably and reliably, and is suitable for use in a variety of industrial environments.



• Wide material compatibility:

M01 desktop fiber laser marking machine supports fine marking operations of various metal materials and some non-metallic materials, and is widely used in multiple industries such as automotive parts, electronic components, medical equipment, hardware tools, etc., creating more application possibilities for customers.

M01 desktop fiber laser marker can be used for marking of metal materials and some non-metal materials such as electronic components, hardware tools, electronic products, daily consumer goods, sensors, auto parts, handicrafts, precision instruments, gifts and accessories, medical equipment, high and low voltage electrical appliances, sanitary ware, etc.
