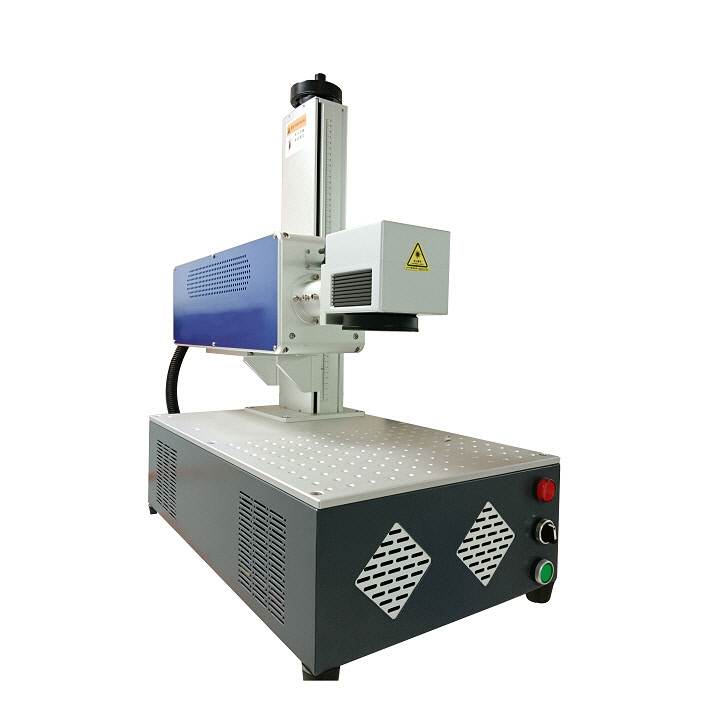

All-in-one Tabletop Fiber Laser Marking Machine
M03 series all-in-one tabletop fiber laser marking machine adopts an integrated design with a compact structure, small size, flexible mobility, and adaptability to a variety of working environments. The entire machine frame is made of high-strength aluminum alloy, taking into account both lightweight and excellent heat dissipation performance to ensure long-term stable operation. The tabletop fiber laser marker is equipped with an advanced control motherboard and friendly marking software, supports personalized customization and fast maintenance. It is easy to operate with efficient processing performance. Equipped with Raycus or Max lasers, high-speed galvanometer scanning systems, and high-performance field lens, the marking speed is fast and ensures the fineness and uniformity of the mark, which is suitable for high-quality marking processing of a variety of metal and non-metal materials.
- • Laser power: 20w, 30w, 50w
- • Beam diameter: <8mm
- • Marking area: 100*100~500*500mm
- • Minimum line width: 0.01~0.05mm
- • Processed materials: stainless steel, aluminum alloy, copper, hard plastic, etc.
- Information
- Specification
- Video
| Item | M03-20 | M03-30 | M03-50 |
| Supply voltage | 110v/220v, 50/60Hz | 110v/220v, 50/60Hz | 110v/220v, 50/60Hz |
| Overall power consumption | <500w | <500w | <500w |
| Cooling method | Air cooling | Air cooling | Air cooling |
| Laser output power | 20w | 30w | 50w |
| Laser light source | MAX/ Raycus | MAX/ Raycus | MAX/ Raycus |
| Laser wavelength | 1064nm | 1064nm | 1064nm |
| Beam diameter | <8mm | <8mm | <8mm |
| Marking area | 100*100~200*200mm | 100*100~300*300mm | 100*100~500*500mm |
| Minimum line width | 0.01~0.05mm | 0.01~0.05mm | 0.01~0.05mm |
| Minimum character | 0.3mm | 0.3mm | 0.3mm |
| Marking depth | 0.05~0.2mm | 0.05~1.2mm | 0.05~2mm |
| Max. marking speed | 7000mm/s | 7000mm/s | 7000mm/s |
| Cable length | 1.5m (cable length and plugs can be customized) | 1.5m (cable length and plugs can be customized) | 1.5m (cable length and plugs can be customized) |
| Working environment | -10℃~40℃ | -10℃~40℃ | -10℃~40℃ |
| Weight | About 45kg | About 45kg | About 45kg |
• Compact integrated structure, flexible and convenient: the M03 all-in-one tabletop fiber laser marking machine adopts an integrated design, with a small overall size, easy to move and arrange, suitable for a wide variety of working environments, and effectively helps save valuable operating space.
• All-aluminum alloy mechanical frame, lightweight yet efficient: the mechanical structure of the whole machine is made of high-quality aluminum alloy materials, which has both lightweight and high-strength characteristics. It is not only easy to carry, but also has good heat dissipation performance to ensure long-term operation stability.
• Intelligent control system and user-friendly software interface: equipped with advanced control motherboard and high-performance marking software (JCZ), the tabletop laser marking system responds quickly, supports personalized customization and rapid maintenance, and improves operating efficiency and user experience.
• Humanized touch operation platform: equipped with a touch screen computer, integrated hidden keyboard and mouse storage compartment, and comes with a detachable mouse tray, taking into account both beauty and practicality, creating a neat and orderly operation interface.
• High-quality laser configuration, stable and durable: the laser is designed and developed by famous brands such as Raycus or Max, with stable output power, excellent beam quality and long service life, providing users with long-lasting and reliable processing guarantees.
• High-speed scanning galvanometer system, accurate and efficient: high-speed galvanometer technology is used to significantly reduce response delay, greatly improve marking speed while ensuring marking accuracy, and meet the needs of efficient production.
• High-performance field lens system for uniform and refined beam distribution: Fitted with a high-quality focusing field lens, this system optimizes beam distribution at the edges, achieving uniform and consistent spot size, thereby significantly improving marking clarity and detail resolution.
With its high precision, high stability, and flexible and convenient features, the M03 all-in-one fiber laser marking machine has been widely used in product marking in many fields, including electronic components, hardware tools, electrical equipment, daily consumer goods, sensors, auto parts, handicrafts, precision instruments, gift accessories, medical equipment, high and low voltage electrical appliances, and sanitary ware. The all-in-one laser marker is particularly suitable for application scenarios with limited installation space or requiring frequent movement and on-site operation. It can meet the efficient marking needs under various working conditions such as production lines, maintenance points, and customized services, and is an ideal choice for modern industrial identification and personalized processing.
