Split-type 20w 30w 50w Raycus Fiber Laser Marking Machine

NITRATEK M04 series split-type Raycus fiber laser marking machine has multiple power configurations such as 20W, 30W and 50W, which can flexibly adapt to the marking requirements of different scenarios. We can flexibly configure lasers of different brands according to customer needs, such as Raycus, Max, JPT, etc. This small but powerful laser marker is designed to handle a variety of materials, including various types of metals and plastic materials such as ABS and PVC. This high-precision laser system can accurately engrave complex graphics, fine text and high-definition barcodes, and is ideal for applications that pursue extreme precision and identification clarity.

  • • Laser power: 20w, 30w, 50w
  • • Beam diameter: <8mm
  • • Marking area: 100*100~500*500mm
  • • Minimum line width: 0.01~0.05mm
  • • Processed materials: stainless steel, aluminum alloy, copper, hard plastic, etc.
  • Information
  • Specification
  • Video
ItemM04-20M04-30M04-50
Supply voltage110v/220v, 50/60Hz110v/220v, 50/60Hz110v/220v, 50/60Hz
Overall power consumption<500w<500w<500w
Cooling methodAir coolingAir coolingAir cooling
Laser output power20w30w50w
Laser light sourceJPT/ MAX/ RaycusJPT/ MAX/ RaycusJPT/ MAX/ Raycus
Laser wavelength1064nm1064nm1064nm
Beam diameter<8mm<8mm<8mm
Marking area100*100~200*200mm100*100~300*300mm100*100~500*500mm
Minimum line width0.01~0.05mm0.01~0.05mm0.01~0.05mm
Minimum character0.3mm0.3mm0.3mm
Marking depth0.05~0.2mm0.05~1.2mm0.05~2mm
Max. marking speed7000mm/s7000mm/s7000mm/s
Cable length1.5m (cable length and plugs can be customized)1.5m (cable length and plugs can be customized)1.5m (cable length and plugs can be customized)
Working environment-10℃~40℃-10℃~40℃-10℃~40℃
WeightAbout 45kgAbout 45kgAbout 45kg


Multi-platform compatibility, wide application

M04 series Raycus fiber laser marker has excellent image format compatibility and can handle a variety of graphic file types, suitable for all kinds of companies that need to engrave serial numbers, brand logos or personalized information. The system can be seamlessly connected to the Windows operating system. The installation is convenient and the operation is intuitive, so whether it is a first-time user or an experienced technician, it can quickly get started.



High-performance laser core, stable and reliable

This fiber laser marking machine is equipped with a high-quality fiber laser source from Raycus, Max or JPT, creating a rugged and durable industrial-grade marking solution. It is known for its high speed and consistency, setting a new standard in the industry. Unlike traditional marking methods, our laser system does not produce harmful gases during operation, is safe and environmentally friendly, and effectively avoids fire hazards.

This versatile device can easily cope with the processing needs of a variety of materials such as metal, wood, plastic, etc., and can complete fine engraving without contact. Through high-frequency short-pulse technology, it penetrates deep into the material to achieve high-temperature and wear-resistant high-quality marking effects. Whether it is on marble, leather or carpet, detailed patterns can be engraved.



High efficiency and energy saving, cost control

The split structure design combined with high-frequency pulse output ensures uniform and consistent marking quality without damaging the material. The laser beam is precisely focused by the optical lens to form an extremely fine spot, thus achieving ultra-high precision marking effect. The use of this equipment can significantly reduce material loss and downtime, greatly improve overall production efficiency, and is an ideal choice for pursuing a balance between efficiency and economy.

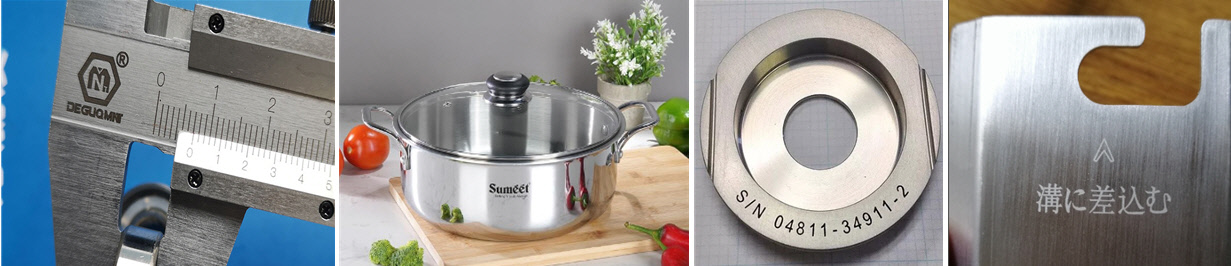

fiber laser welding effect


Fast marking, strong adaptability

For different materials such as metal, plastic, coating surfaces and etc., we provide a variety of power options (20W / 30W / 50W) to meet diverse processing needs. Among them, the 30W model can complete a complete marking operation in 1 second at the fastest, far exceeding the performance of similar products. The equipment supports all-weather continuous operation, has excellent stability and efficiency, and is an ideal assistant for mass production.

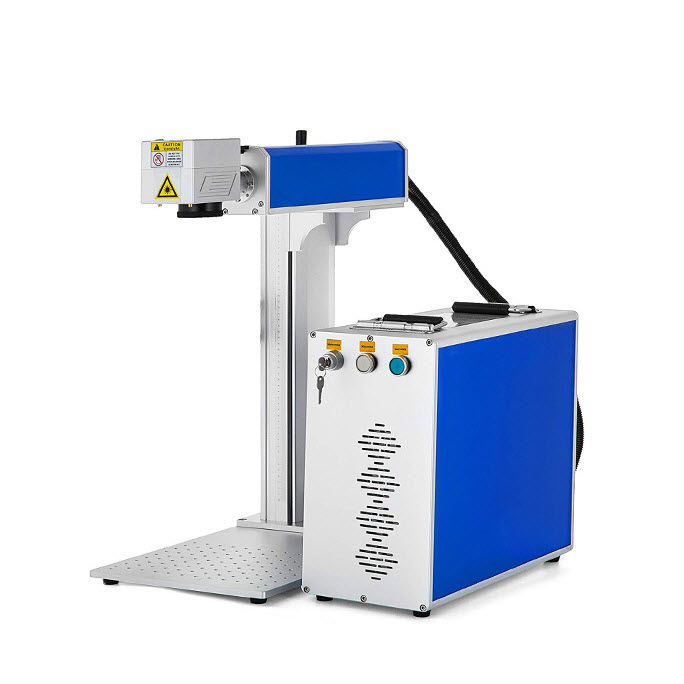

Unique structural design, more flexible operation

This Raycus laser marking machine adopts a split structure, which separates the laser host from the workbench, providing a larger operating space, and is convenient for processing workpieces of various sizes and shapes. The laser head can be freely retracted for daily maintenance and inspection. The air isolation design effectively isolates the deformation caused by thermal effects, ensuring clear and stable engraving effects on sensitive materials. The built-in efficient air cooling system ensures the stability of the equipment during long-term operation, reduces component loss, and extends service life. Whether it is customized patterns or complex logo engraving, users can easily complete it without complex design skills.



Durable and quality guaranteed

This fiber laser marking machine combines high-strength structure with precision control, and can achieve high-precision marking without causing material warping or delamination. Equipped with an industrial-grade laser head, it responds quickly and runs stably, making it the preferred tool for companies that focus on quality and efficiency. The user-friendly operation interface further simplifies the process, allowing every operator to easily master it.



If you are looking for a marking device that combines high performance and long life, then our fiber laser marking system is undoubtedly your ideal choice. From hardware configuration to functional design, we are committed to providing you with a long-lasting, efficient and environmentally friendly processing experience.


M04 split-type Raycus fiber laser marking machine has been widely used in many manufacturing and processing fields due to its excellent stability and flexibility, including electronic components, hardware products, electrical equipment, daily necessities, sensors, auto parts, craft gifts, precision instruments, jewelry, medical equipment, high and low voltage electrical appliances, sanitary products, etc. The equipment has excellent performance in marking accuracy and mobile adaptability, and is especially suitable for scenes with high positioning requirements and changeable working environments. It is an ideal choice for efficient and accurate marking.
