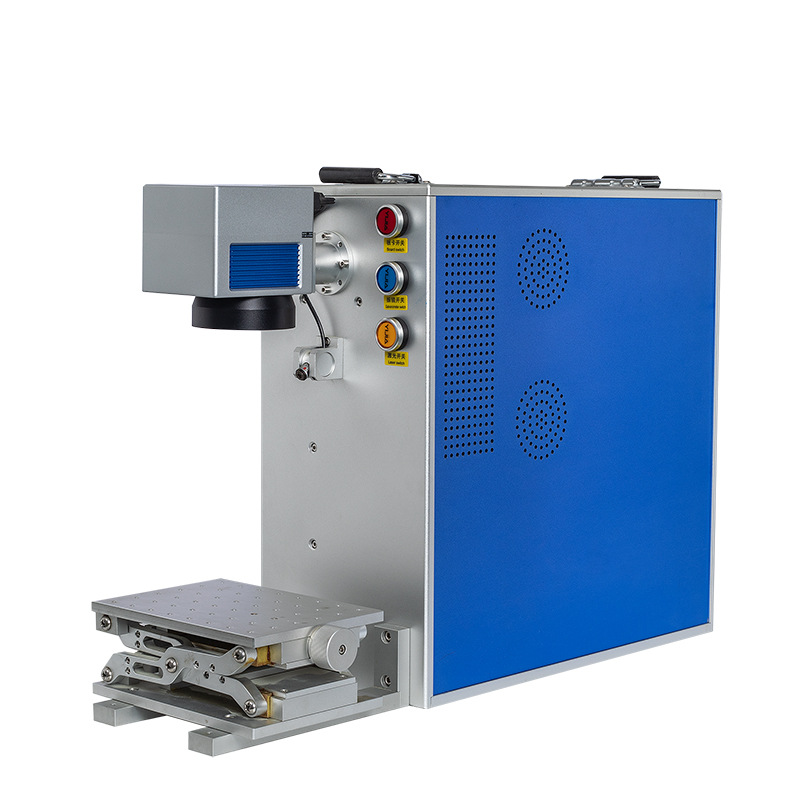

Lightweight Portable Fiber Laser Marking Machine

M02 series portable fiber laser marking machines have become ideal tools for modern industrial precision machining. It features efficient and stable performance, compact and flexible design, and excellent marking effect. The portable laser marker uses advanced continuous pulse fiber laser technology, has high peak power and excellent beam quality, can achieve ultra-fine line width marking, and is suitable for fine marking of a variety of metal materials and some non-metallic materials. Whether it is electronic components and medical devices that require high-precision engraving, or automotive parts and hardware tools that require high durability, the equipment can easily cope with it and provide clear, durable and highly consistent marking effects. It is widely used in many industries such as automotive manufacturing, electronic communications, medical equipment, aerospace, jewelry and personalized customization, and is an ideal solution for achieving high-quality and efficient marking.

  • • Laser power: 20w, 30w, 50w
  • • Beam diameter: <8mm
  • • Marking area: 100*100~500*500mm
  • • Minimum line width: 0.01~0.05mm
  • • Processed materials: stainless steel, aluminum alloy, copper, hard plastic, etc.
  • Information
  • Specification
  • Video
ItemM02-20M02-30M02-50
Supply voltage110v/220v, 50/60Hz110v/220v, 50/60Hz110v/220v, 50/60Hz
Overall power consumption<500w<500w<500w
Cooling methodAir coolingAir coolingAir cooling
Laser output power20w30w50w
Laser light sourceMAX/ RaycusMAX/ RaycusMAX/ Raycus
Laser wavelength1064nm1064nm1064nm
Beam diameter<8mm<8mm<8mm
Marking area100*100~200*200mm100*100~300*300mm100*100~500*500mm
Minimum line width0.01~0.05mm0.01~0.05mm0.01~0.05mm
Minimum character0.3mm0.3mm0.3mm
Marking depth0.05~0.2mm0.05~1.2mm0.05~2mm
Max. marking speed7000mm/s7000mm/s7000mm/s
Cable length1.5m (cable length and plugs can be customized)1.5m (cable length and plugs can be customized)1.5m (cable length and plugs can be customized)
Working environment-10℃~40℃-10℃~40℃-10℃~40℃
WeightAbout 30kgAbout 30kgAbout 30kg


High-performance laser output: this portable handheld laser marker uses a continuous pulse fiber laser. The beam quality is excellent (M²<1.5), close to the diffraction limit, ensuring clear and stable fine marking effects.


All-fiber structure design: the laser adopts an all-fiber integrated architecture, which eliminates the complex adjustment process required by traditional optical components, greatly improves the stability and reliability of the portable laser marking system, and reduces the need for daily maintenance.

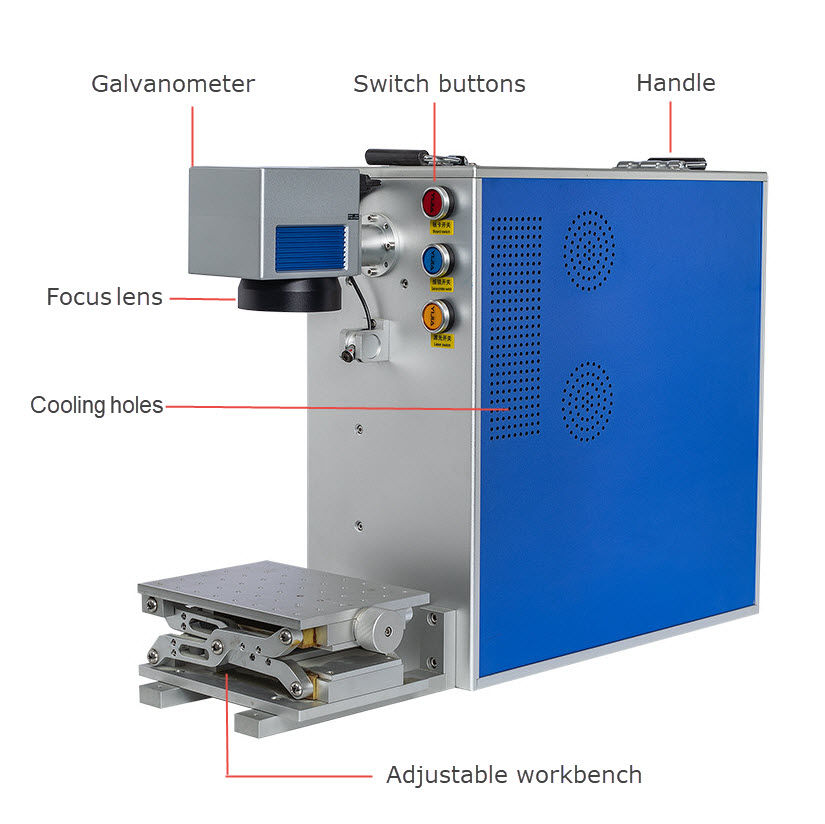

Integrated portable structure: the whole machine is highly integrated, compact, easy to move and deploy, suitable for a variety of industrial scenarios, and brings users higher operational flexibility and ease of use.


Ultra-long service life: the portable laser marking equipment has a theoretical working life of up to tens of thousands of hours, a small size, and no complex water cooling device is required. It can run with only basic air cooling, saving space and reducing later maintenance costs.


Strong environmental adaptability: the optimized design enables it to operate stably under complex working conditions such as high temperature and dust, meeting the diverse needs of on-site applications and ensuring continuous and efficient operation.




Extremely fast processing and high-precision performance: compared with traditional equipment, the marking speed is increased by 2 to 3 times. Thanks to the excellent beam quality and extremely small focused spot, the marking lines are thinner and the edges are clearer, which is particularly suitable for precision marking tasks with high requirements for details.


Energy saving and environmental protection, low operating cost: the power consumption of the whole machine is less than 500 watts, which is much lower than that of traditional lamp pumping and semiconductor laser equipment. The energy saving effect is significant, which can save a lot of electricity expenses for enterprises every year, in line with the concept of green manufacturing.


Modular structure, easy maintenance: the overall modular integrated design is adopted, with a clear structure, easy to repair and replace parts, while further reducing the size of the equipment, saving valuable workshop space, and improving site utilization.

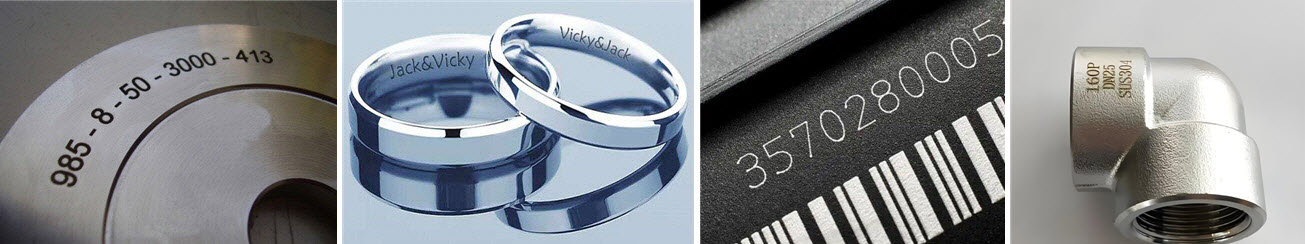

NITRATEK M02 portable fiber laser marker is a versatile device designed to meet the precise marking needs of a variety of industries. It is widely used in the marking of electronic components, hardware tools, electrical products, consumer goods, sensors, auto parts, crafts, precision instruments, gifts and accessories, medical equipment, high and low voltage electrical appliances, sanitary ware and other products. This portable laser marker is particularly suitable for environments that require high flexibility and mobility, such as instant marking on production lines and customized services in stores. Whether it is fixed installation or on-site operation, the M02 portable fiber laser marker can complete the task with excellent stability and accuracy, meeting the high standards of various users.
