200w 300w Handheld Pulsed JPT Fiber Laser Cleaning Machine

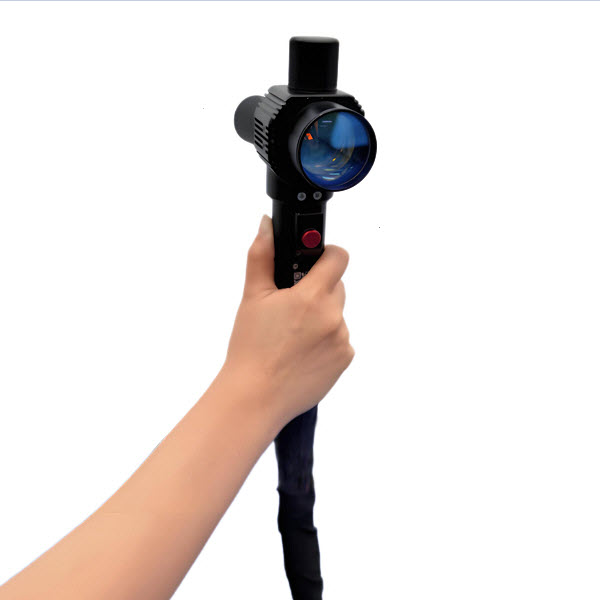

C01 series handheld pulse JPT laser cleaning machine brings you an innovative non-contact cleaning solution that can complete efficient cleaning without damaging the surface of the workpiece. Its compact design and lightweight laser cleaning head are convenient for long-term handheld operation. At the same time, no chemical cleaning agents are required, and there are no consumables, which achieves true safety and environmental protection. This pulse laser cleaner is easy to operate and plug and play. Whether it is manual operation or integration with a robot to achieve automated cleaning, it can easily handle it. C01 series is an ideal choice for people who pursue high-efficiency and high-quality cleaning needs.

  • • Laser source: JPT
  • • Wavelength: 1064nm
  • • Pulse width: 10~500Ms
  • • Max. single pulse energy: 5mJ

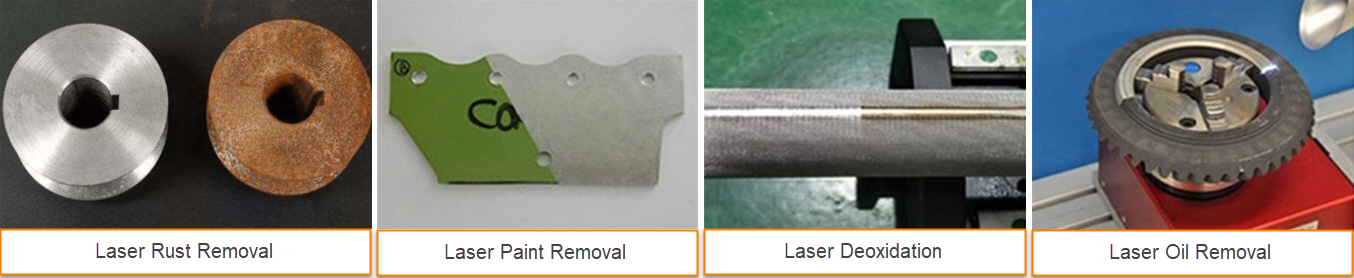

  • • Applications: rust removal, degreasing, paint removal, coating removal, weld cleaning
  • Information
  • Specification
  • Video
ItemC01-200C01-300
Max. laser power200W300W
Wavelength1064nm1064nm
Operating modePulsedPulsed
Frequency range1~3000Hz1~3000Hz
Pulse width (ns)10~500Ms10~500Ms
Adjustable scanning range1~120mm1~120mm
Cooling methodAir coolingAir cooling
Rated power1KW1.2KW
Working voltage220V±5V220V±5V
Dimensions/ weightMain machine: 50*25*44cm/ 31kgMain machine: 50*25*44cm/ 31kg


C01 series pulse laser cleaning machine adopts an innovative multi-hole heat dissipation design, which effectively improves the heat dissipation efficiency during long-term operation and ensures that the laser system is always at the optimal working temperature, thereby ensuring stable cleaning performance and extending service life.



The handheld 200w 300w pulsed laser rust removal machine is equipped with a well-known brand JPT high-performance laser, ZBTK high-precision galvanometer system and high-quality optical lens components. The overall structure is compact, the response speed is fast, and the optical path is accurate and stable. With professional control software, it can meet the stringent requirements of multiple industries for efficient and high-quality cleaning.

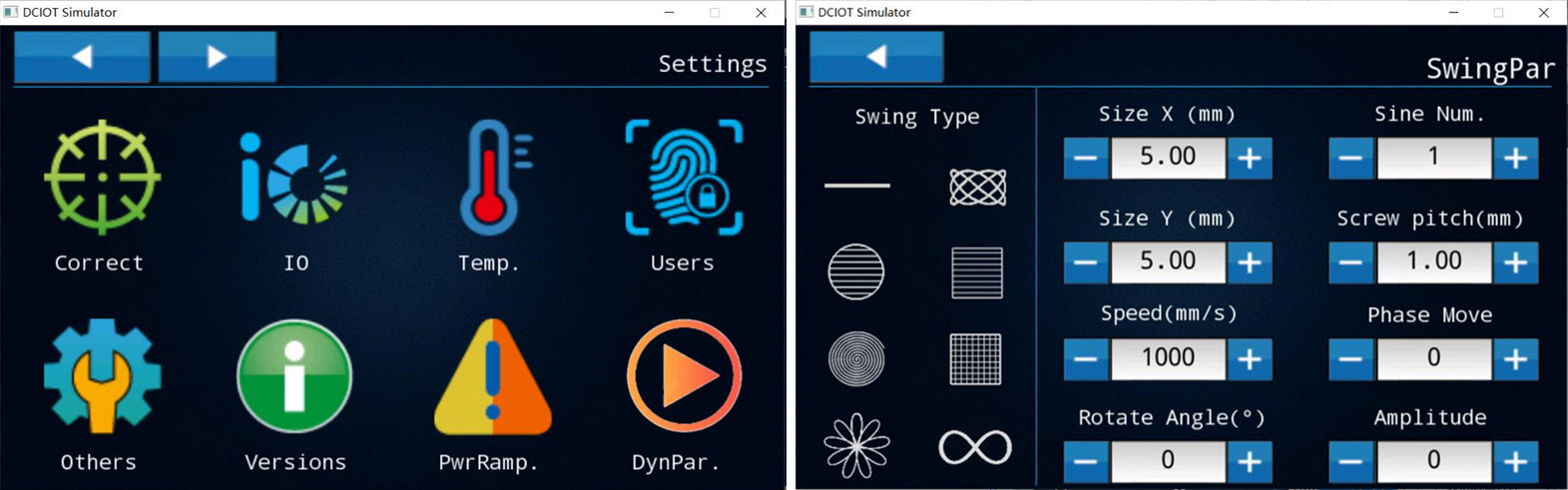

It provides 8 cleaning trajectory modes for you to choose from, which can be flexibly switched according to the shape of the workpiece or the cleaning requirements, and easily cope with complex surface treatment tasks. At the same time, you can conveniently set parameters such as scanning width, speed, rotation angle, etc. via the touch screen interface, and the operation is intuitive and convenient.

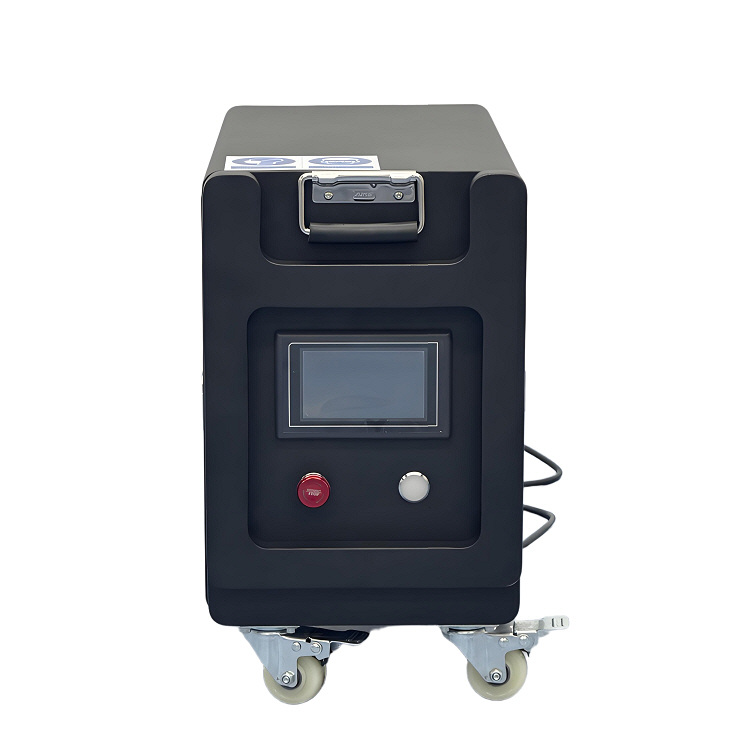

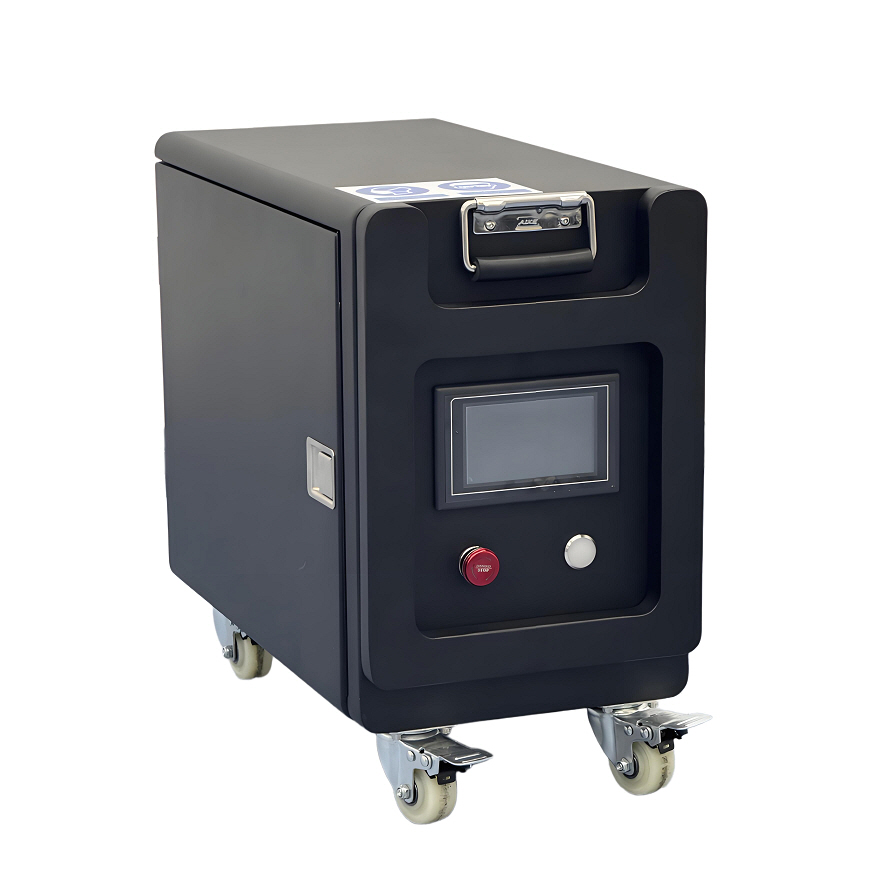

C01 series pulsed JPT fiber laser cleaning machine features an integrated design with a compact body, a size of only 50*25*44cm (length*width*height), and a weight of only 31kg. It is equipped with universal moving wheels for flexible movement and is suitable for various on-site working environments.

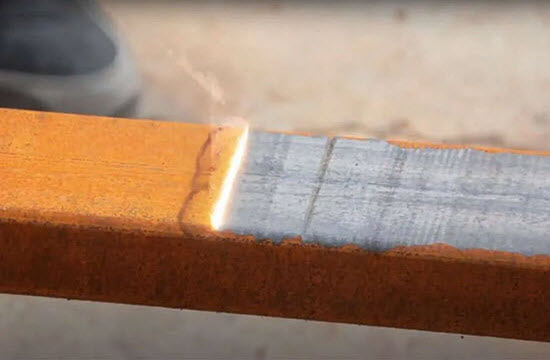

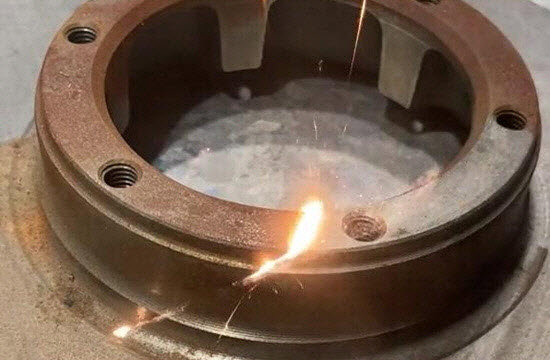

It is particularly suitable for outdoor scenes such as building cleaning, road maintenance, and automobile repair. It can effectively remove graffiti, rust, paint, oxide layers and other pollutants on the surface of objects. The entire cleaning process does not require the use of any chemical agents. It is safe, environmentally friendly, healthy and reliable.
