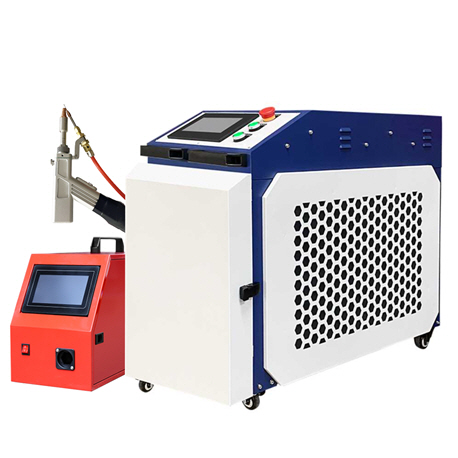

1500w 2000w Handheld Fiber Laser Welding Machine

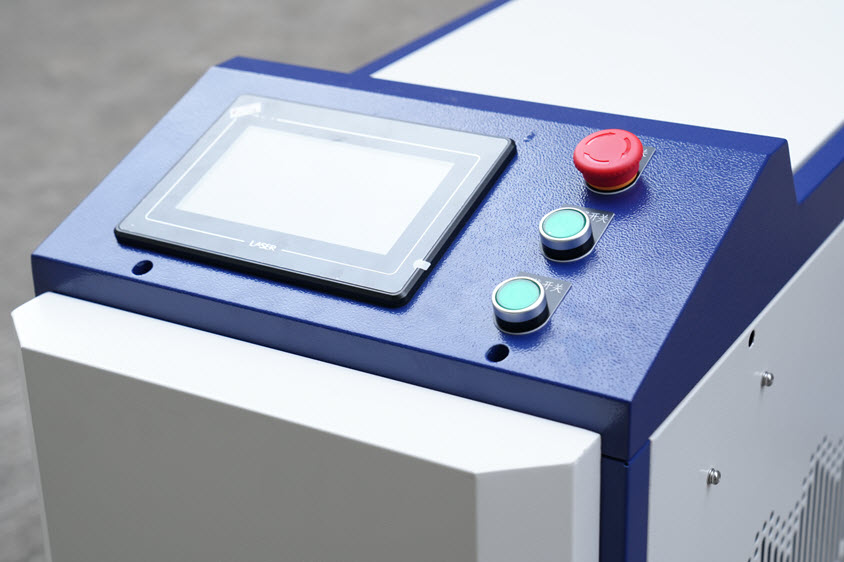

W01 portable handheld continuous fiber laser welding machine combines high efficiency, flexibility and excellent performance. It adopts a compact and lightweight design concept, with a sophisticated structure, easy to move and operate at multiple angles, and is particularly suitable for on-site operations and complex working environments. It is equipped with an efficient water cooling system to ensure long-term stable operation of the equipment; at the same time, it is equipped with an intuitive and easy-to-use operating interface, with clear parameter settings and convenient use. Its welds are fine and firm, with good forming effects, and it is an ideal portable welding solution in modern manufacturing.

  • • Laser power: 1500w, 2000w
  • • Welding speed: 0~200mm/s
  • • Welding thickness: 0.4~6mm
  • • Welding gap: ≤0.5mm
  • • Processed materials: carbon steel, stainless steel, aluminum alloy, etc.
  • Information
  • Specification
  • Video

W01 series 1500w 2000w handheld fiber laser welders are suitable for various process requirements such as thin plate welding, precision parts welding, dissimilar materials welding, etc. It is especially suitable for industries with extremely high requirements for welding precision such as new energy batteries, medical equipment, aerospace and other fields.


Technical parameters:

Item
W01-1500W01-2000
Laser power
1500w2000w
Laser wavelength1070nm
1070nm
Fiber length
Standard 10M, maximum support 15M (customizable)Standard 10M, maximum support 15M (customizable)
Working typeContinuous modulationContinuous modulation
Welding speed range
0~200mm/s
0~200mm/s
Cooling water machineIndustrial constant temperature water tankIndustrial constant temperature water tank
Working TEMP.
-10~35℃ (add antifreeze when the temperature is below zero)-10~35℃ (add antifreeze when the temperature is below zero)

Working environment humidity

<70% no condensation<70% no condensation

Recommended welding thickness

0.4 ~ 6mm
0.4 ~ 6mm
Welding gap requirement
≤0.5mm≤0.5mm
Working voltage
AC220V/ AC380V/ 50Hz
AC220V/ AC380V/ 50Hz
Shielding gasNitrogen or argonNitrogen or argon
Equipment size
920*580*780mm
920*580*780mm
Weight120kg
120kg


Welding penetration reference data

Power
Stainless SteelIron
GalvanizingAluminum
1500w0.4~3.5mm
0.4~3.5mm
0.4~3.5mm0.4~3.5mm
2000w0.4~4.5mm
0.4~4.5mm
0.4~4.5mm0.4~4.5mm

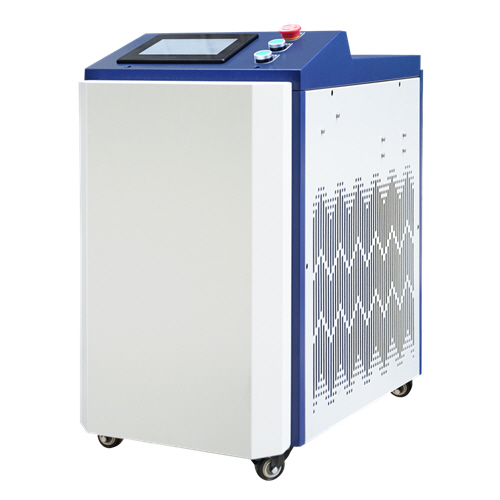

Compat and lightweight design: the W01 series handheld laser welding machine has a small and light design, which is easy to move and weighs only 120KG.


High cost performance: improve welding speed, weaken manual skill requirements, and reduce post-welding grinding and polishing processes; the welding speed is 3-10 times that of traditional welding, and one machine can save 3.5 welders.


Easy to use: complete from learning to proficiency in a few hours. You can easily get started and achieve high-quality welding without professional skills.

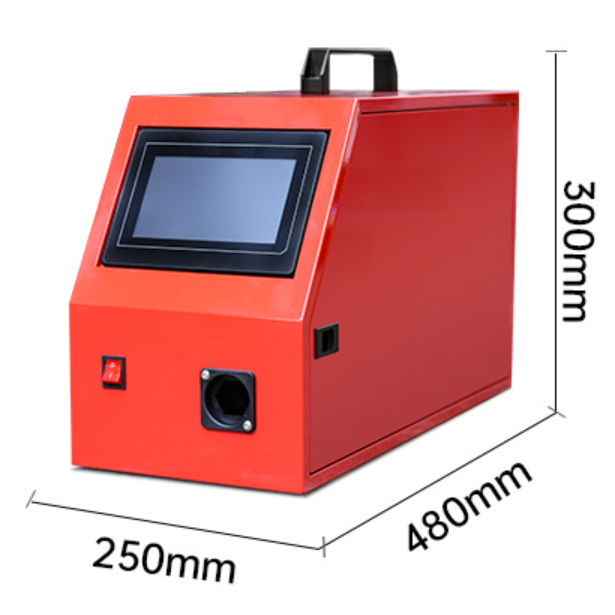

Outstanding welding effect: automatic wire feeding system control. The weld is smooth, uniform and beautiful.


Environmental protection and safety: during the operation of traditional welding machines, welding dust splashes and produces harmful gases, which are harmful to the environment and the health of workers; the W01 series handheld laser welding machine has almost zero harm to the environment.


High working performance: less consumables, long life, and stable continuous welding performance.


Strong scalability: it can be expanded to configure a manipulator or CNC welding machine, and can replace ordinary handheld heads to meet various welding needs.


Small hot zone effect: the hot zone of laser welding is concentrated, the workpiece has no deformation, no weld scars, and the welding is firm.


Equipped with a full set of professional welding nozzles: meet the needs of various welding processes such as butt welding, fillet welding, overlap welding, and lap welding.

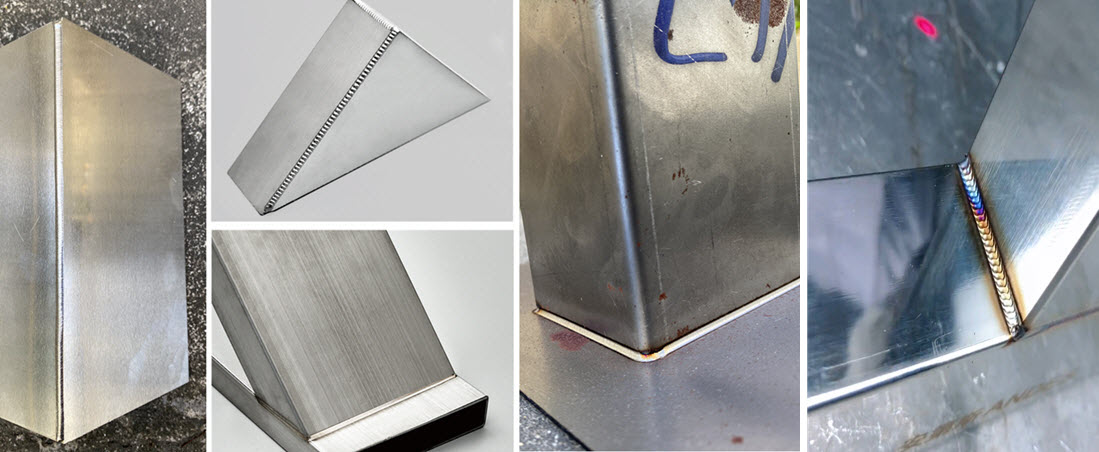

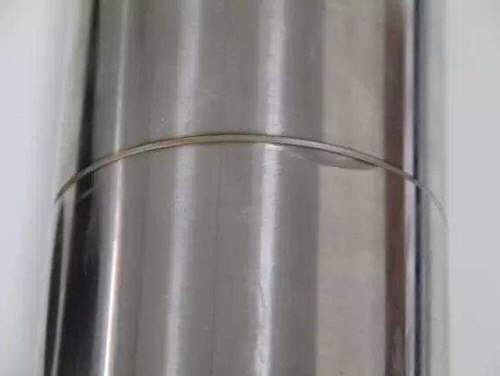

• Welding effect of W01 handheld fiber laser welder:
