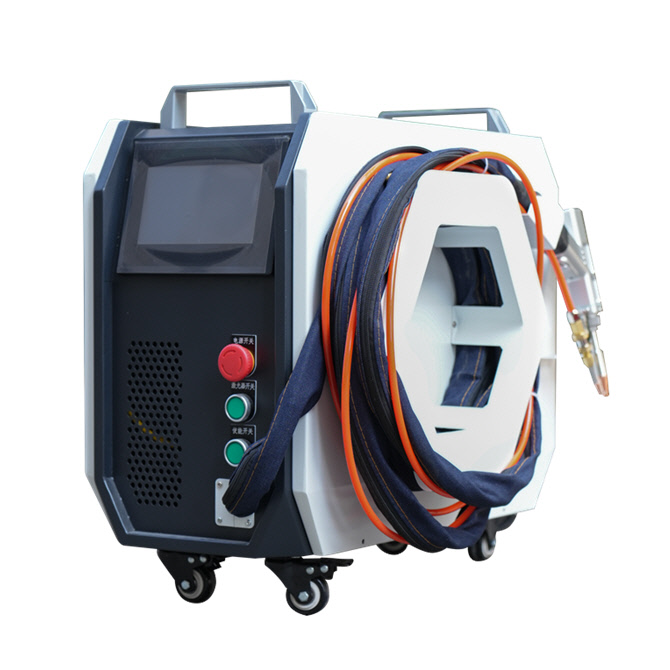

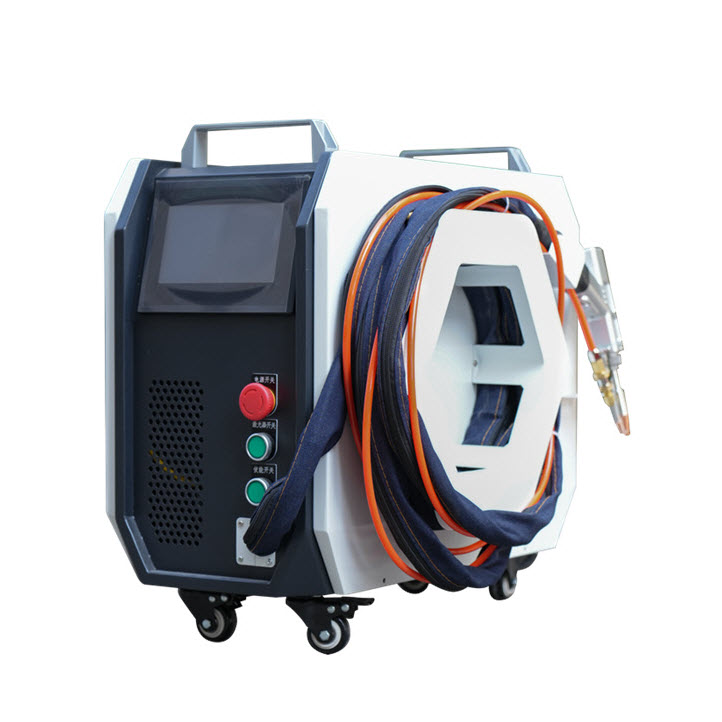

800w 1200w 1500w Air-Cooled Mini Portable Laser Welder

NITRATEK air-cooled mini portable laser welding machine is equipped with advanced forced air cooling system and phase change heat sink to ensure stable laser output power. According to the air-cooled plate temperature, the fan speed can be intelligently adjusted, and the main board card contains an intelligent variable speed fan control program. Using high temperature resistant chip technology solutions, it supports longer welding work. Compared with traditional arc welding machines, it has high welding effect, does not require professional welders, and has low labor costs. This mini laser welder is light and convenient, easy to move and suitable for outdoor operations.

  • • Laser power: 800w, 1200w, 1500w
  • • Welding speed: 0~200mm/s
  • • Welding thickness: 0.4~3.5mm
  • • Welding gap: ≤0.5mm
  • • Processed materials: carbon steel, stainless steel, aluminum alloy, etc.
  • Information
  • Specification
  • Video

W02 series mini fiber laser welder can be applied to weld different types of metal materials, and it is widely used in a wide variety of items, such as door, cabinet, auto parts, home appliances, furniture, machinery and etc. Below are the technical parameters of W02 air cooled mini laser welding machine.


ItemsW02 Mini Air-Cooled Laser Welder
Laser power
800w/ 1200w/ 1500w
Laser wavelength
1070nm
Fiber length
Standard 10M, maximum support 15M (customizable)
Working type
Continuous modulation
Welding speed range0~200mm/s
Cooling water machineIndustrial constant temperature water tank
Working TEMP.15~35℃
Working environment humidity<70% no condensation
Recommended welding thickness0.4~3.5mm
Welding gap requirement≤0.5mm
Working voltageAC220V/ AC380V/ 50Hz
Shielding gasNitrogen or argon
Equipment size377*580*510mm
WeightSingle cabinet 23kg

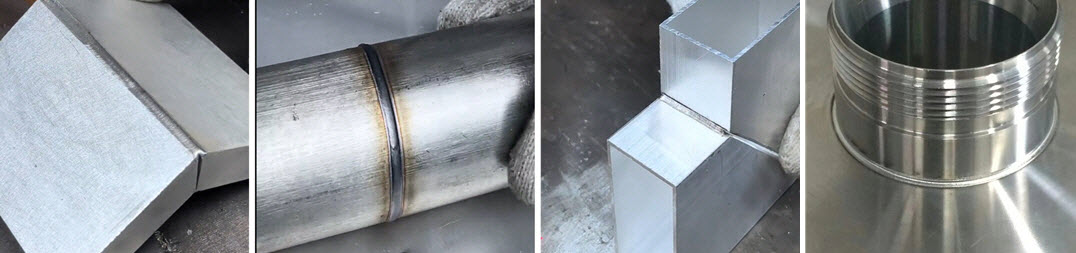

The welding penetration reference datas are as follows:

• 800W: 0.4~2.5mm for stainless steel, iron, galvanized sheet and aluminum.

• 1200W: 0.4~3.0mm for stainless steel, iron, galvanized sheet and aluminum.

• 1500W: 0.4~3.5mm for stainless steel, iron, galvanized sheet and aluminum.

• The portable fiber laser welder adopts a new appearance design, compact structure, small size and light weight. The whole machine weighs only 38 kg, which greatly facilitates outdoor operations and on-site construction.


• Equipped with advanced ABR super anti-high reflection technology, it can efficiently handle welding tasks of some high-reflectivity materials such as aluminum alloy, expanding the application range of the equipment.


• The innovatively developed handheld welding gun is designed with ergonomics in mind, light weight, and is not easy to cause fatigue after long-term operation, which improves the comfort and efficiency of work.


• Equipped with an industrial-grade LED touch display, the interface is intuitive and friendly, and the response is fast. Users can easily adjust power, switch modes, and view fault information. All functions are clear at a glance, simplifying the operation process and improving work efficiency.


• The welding effect of 800w Air Cooled Portable Laser Welder


This video shares that the mini portable laser welder is welding the aluminum. You can also use the machine to weld other metal materials such as iron, stainless steel, carbon steel and etc.
