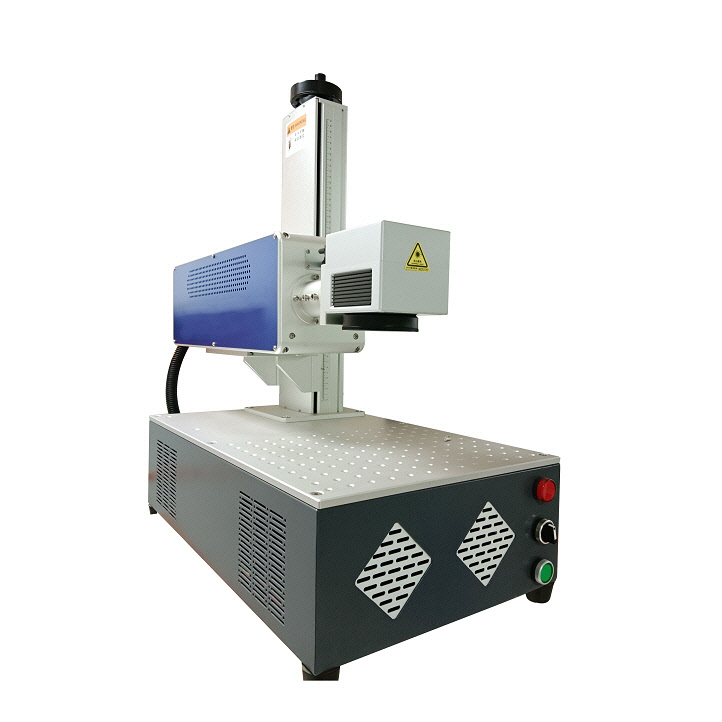

All-in-one Portable CO2 Laser Marking Machine
M08 series all-in-one portable CO₂ laser marking machine adopts an integrated compact structure design, which not only effectively saves floor space, but also greatly enhances the mobility of the equipment. Its modern appearance design helps to create a neat and orderly working environment, and is particularly suitable for production sites with high requirements for space utilization. The equipment is equipped with a high-brightness workbench lighting system, which further improves the positioning accuracy and operational safety during the processing process. This optimized design not only ensures efficient output, but also ensures stable and high-quality marking effects. Whether it is daily mass production or personalized customization tasks, this model can provide stable and reliable performance, helping companies achieve a dual increase in production capacity and quality.
- • Laser power: 30w, 40w, 60w
- • Beam diameter: <1.2mm
- • Minimum line width: 0.01~0.1mm
- • Wavelength: 10.6um
- • Processed materials: wood, acrylic, glass, textiles, leather, plastics etc.
- Information
- Specification
- Video
| Item | M08-30 | M08-40 | M08-60 |
| Supply voltage | 110v/220v, 50/60Hz | 110v/220v, 50/60Hz | 110v/220v, 50/60Hz |
| Overall power consumption | <1000w | <1000w | <1000w |
| Cooling method | Air cooling | Air cooling | Air cooling |
| Laser output power | 30w | 40w | 60w |
| Laser light source | DAVI/ CRD/ HAN's | DAVI/ CRD/ HAN's | DAVI/ CRD/ HAN's |
| Laser wavelength | 10.6um | 10.6um | 10.6um |
| Beam diameter | <1.2mm | <1.2mm | <1.2mm |
| Marking area | 100*100~200*200mm | 100*100~300*300mm | 100*100~500*500mm |
| Minimum line width | 0.01~0.1mm | 0.01~0.1mm | 0.01~0.1mm |
| Minimum character | 0.5mm | 0.5mm | 0.5mm |
| Marking depth | 0.1~0.5mm | 0.1~2mm | 0.1~4mm |
| Max. marking speed | 7000mm/s | 7000mm/s | 7000mm/s |
| Cable length | 1.5m (cable length and plugs can be customized) | 1.5m (cable length and plugs can be customized) | 1.5m (cable length and plugs can be customized) |
| Working environment | -10℃~40℃ | -10℃~40℃ | -10℃~40℃ |
| Weight | About 45kg | About 45kg | About 45kg |
M08 series portable CO₂ laser marking machine is specially developed for fine marking. It is equipped with advanced DAVI laser technology and high-performance RC1001 galvanometer system. The two work together to ensure the precise performance of the equipment at high speed and realize a clean and environmentally friendly processing process. The seamless cooperation between the laser generator and the scanning system significantly improves the marking efficiency and is an ideal choice for improving the level of automation and process quality.
M08 all-in-one CO₂ laser marking machine is equipped with a professional-grade machine tool lighting device to provide uniform and bright light support for the operation area, so that the surface of the workpiece and the marking area are clearly visible, greatly reducing the operating errors caused by visual errors, thereby optimizing the overall operation process and improving production efficiency and yield rate.
This portable CO2 laser marker has a wide range of material adaptability, especially suitable for high-precision engraving and identification processing of bamboo and wood products, paper, leather, glass, cloth, acrylic and various packaging materials. With excellent compatibility, it is widely used in packaging, textiles, handicrafts, electronic manufacturing and other industries, whether it is conventional product nameplates or complex pattern engraving, it can present excellent results.
As environmental protection becomes increasingly important, the M08 series laser marking system adopts a consumable-free design, does not generate pollution emissions during operation, meets green manufacturing standards, and is an ideal tool for enterprises to achieve low-carbon sustainable development. At the same time, its low maintenance requirements and long-life laser source also make it a cost-effective marking solution for long-term use.
In addition, the control software interface of the equipment is simple and intuitive, and the functional layout is reasonable. Whether it is a first-time user or a professional technician, they can quickly get started and efficiently complete the setting adjustment and project alignment. The software supports the import of multiple graphic formats, and has precise positioning and parameter adjustment functions to ensure that each marking task can be completed accurately and efficiently, comprehensively improving the user's operating experience and the value of equipment use.
M08 series portable CO2 laser marker is suitable for the identification of a variety of products and has a wide range of material compatibility. It can be widely used in wood products, glass products, clothing accessories, pharmaceutical packaging, wine labels, architectural ceramics, beverage packaging, cloth cutting, rubber parts, electronic components, leather products, craft gifts, equipment nameplates and other industries. Whether it is daily consumer goods or industrial components, this equipment can achieve fine, clear and lasting marking effects, meeting the dual needs of diversified production and personalized customization.
