Split-type CO2 Galvo Laser Marking Machine

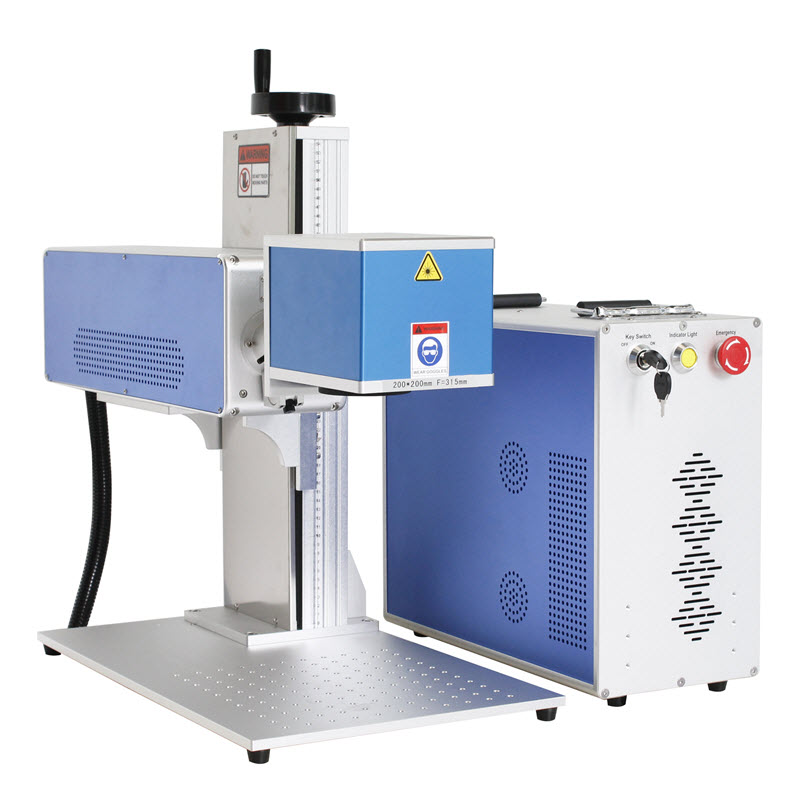

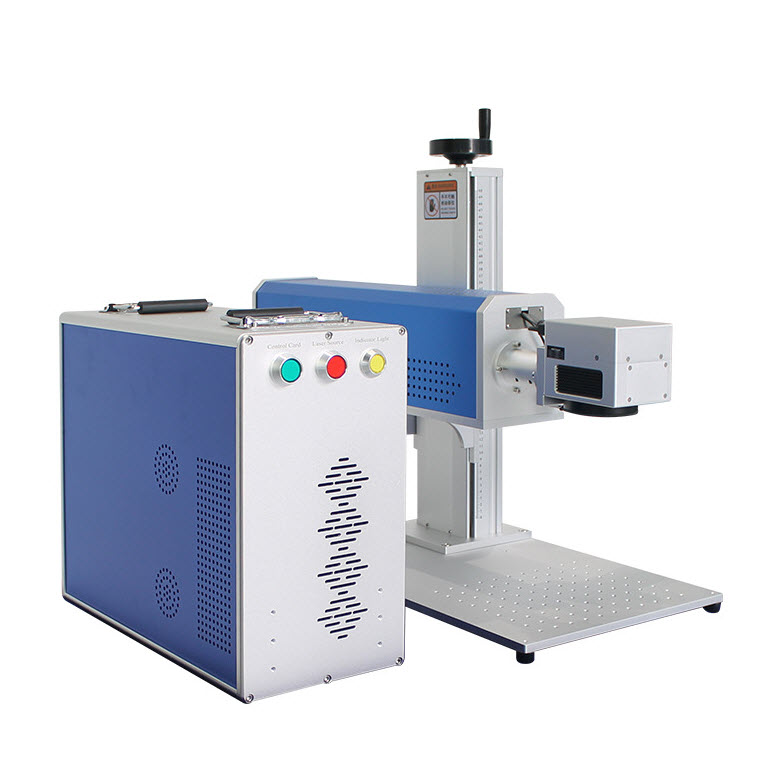

M07 is a compact Glavo CO₂ laser marking machine with a lightweight split structure design. The overall size is small and easy to move and place. This design separates the laser generator from the workbench, which not only releases more operating space, but also makes the processing of workpieces of various materials and sizes more flexible and convenient. The unique split layout improves the flexibility and operating comfort of the equipment during use. At the same time, it provides a variety of power configurations of 30W, 40W and 60W to meet the marking needs of different materials and precision requirements, bringing users a wider range of adaptability and higher application freedom.
- • Laser power: 30w, 40w, 60w
- • Beam diameter: <1.2mm
- • Minimum line width: 0.01~0.1mm
- • Wavelength: 10.6um
- • Processed materials: non-metallic materials such as wood, acrylic, glass, textiles, leather, plastics etc.
- Information
- Specification
- Video
| Item | M07-30 | M07-40 | M07-60 |
| Supply voltage | 110v/220v, 50/60Hz | 110v/220v, 50/60Hz | 110v/220v, 50/60Hz |
| Overall power consumption | <1000w | <1000w | <1000w |
| Cooling method | Air cooling | Air cooling | Air cooling |
| Laser output power | 30w | 40w | 60w |
| Laser light source | DAVI/ CRD/ HAN's | DAVI/ CRD/ HAN's | DAVI/ CRD/ HAN's |
| Laser wavelength | 10.6um | 10.6um | 10.6um |
| Beam diameter | <1.2mm | <1.2mm | <1.2mm |
| Marking area | 100*100~200*200mm | 100*100~300*300mm | 100*100~500*500mm |
| Minimum line width | 0.01~0.1mm | 0.01~0.1mm | 0.01~0.1mm |
| Minimum character | 0.5mm | 0.5mm | 0.5mm |
| Marking depth | 0.1~0.5mm | 0.1~2mm | 0.1~4mm |
| Max. marking speed | 7000mm/s | 7000mm/s | 7000mm/s |
| Cable length | 1.5m (cable length and plugs can be customized) | 1.5m (cable length and plugs can be customized) | 1.5m (cable length and plugs can be customized) |
| Working environment | -10℃~40℃ | -10℃~40℃ | -10℃~40℃ |
Excellent marking effect: high-precision laser technology is used to achieve clear, vivid and lasting marking effects, suitable for various application scenarios with strict requirements on details.
Exquisite structure and powerful functions: adopting a stylish split design, compact size and space-saving, easily adaptable to various working environments, and expand application possibilities.
Sino-Galvo galvanometer system: M07 CO2 laser marking machine adopts Sino-Galvo high-performance high-speed scanning galvanometer system, equipped with advanced high-speed scanning head, with the characteristics of fast response, precise positioning and stable operation. While ensuring high marking speed, the galvanometer system can also achieve fine processing effects, suitable for complex graphics, precise codes and large-area marking tasks.
Flexible movement and convenient deployment: the whole machine is light in weight and has a reasonable structural design, which is convenient for free transfer between different working areas, improving the flexibility and convenience of use.
Intelligent control, simple and efficient: equipped with a highly compatible human-machine operation interface, supporting computer and mobile device connection, intuitive and easy operation, and improving the overall user experience.
Economical operation and cost saving: The design without consumables greatly reduces the long-term use cost, improves the cost performance of the equipment, and helps enterprises achieve an efficient and energy-saving production model.
Efficient and stable, continuous output: With the advantages of fast marking capability and maintenance-free structure, it ensures long-term continuous operation and significantly improves production efficiency and system stability.
Wide compatibility and strong applicability: It is suitable for a variety of non-metallic materials and composite materials, covering multiple industries, and is competent for a variety of marking and engraving tasks.
Green manufacturing, environmentally friendly: M07 CO2 galvo laser marking machine conforms to the concept of energy conservation and environmental protection, operates with low energy consumption and no pollution, and helps enterprises implement sustainable development strategies.
NITRATEK M07 split-type glavo CO₂ laser marking machine is equipped with an efficient air cooling system and combined with stable precision galvanometer technology, it can perform high-quality marking on a variety of non-metallic materials such as bamboo, wood products, paper, leather, glass, cloth, packaging materials, etc. Its excellent adaptability makes it widely used in crafts, decorative materials, textile printing, product packaging and other fields, meeting the needs of different industries for fine marking and personalized engraving.
