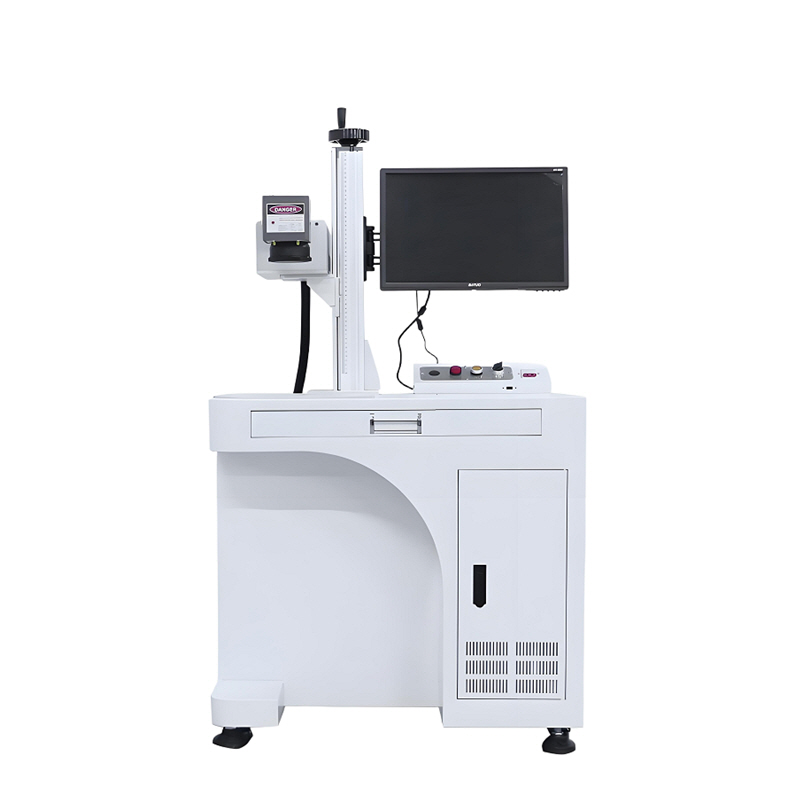

Water Cooled Desktop Ultraviolet Laser Marker
M10 series desktop ultraviolet laser marking machine provides multiple power configurations of 3W, 5W and 10W to meet the processing needs of different application scenarios. The equipment is equipped with an efficient water cooling system to ensure stable working performance during long-term continuous operation. The whole machine adopts a high-quality UV laser generator, a precision galvanometer system and a durable cooling module. This design greatly improves the marking speed and positioning accuracy, while ensuring the stability and durability of the equipment operation. This high-performance combination makes it an ideal tool for many industries to achieve high-precision marking, and is widely used in manufacturing environments with high requirements for both quality and efficiency.
- • Laser power: 3w, 5w, 10w
- • Beam diameter: <1.2mm
- • Marking area: 70*70~300*300mm
- • Minimum line width: 0.01~0.05mm
- • Processed materials: plastic, glass, metal, ceramic, silicon wafer, leather
- Information
- Specification
- Video
| Item | M10-03 | M10-05 | M10-10 |
| Supply voltage | 110v/220v, 50/60Hz | 110v/220v, 50/60Hz | 110v/220v, 50/60Hz |
| Overall power consumption | <1000w | <1000w | <1000w |
| Cooling method | Water cooling | Water cooling | Water cooling |
| Laser output power | 3w | 5w | 10w |
| Laser light source | RFH/ HAN's/ PulseX/ Gainlaser | RFH/ HAN's/ PulseX/ Gainlaser | RFH/ HAN's/ PulseX/ Gainlaser |
| Laser wavelength | 355nm | 355nm | 355nm |
| Beam diameter | <1.2mm | <1.2mm | <1.2mm |
| Marking area | 70*70~110*110mm | 70*70~200*200mm | 70*70~300*300mm |
| Minimum line width | 0.01~0.05mm | 0.01~0.05mm | 0.01~0.05mm |
| Minimum character | 0.1mm | 0.1mm | 0.1mm |
| Marking depth | 0.01~0.1mm | 0.01~0.15mm | 0.01~0.2mm |
| Max. marking speed | 7000mm/s | 7000mm/s | 7000mm/s |
| Cable length | 1.5m (cable length and plugs can be customized) | 1.5m (cable length and plugs can be customized) | 1.5m (cable length and plugs can be customized) |
| Working environment | -10℃~40℃ | -10℃~40℃ | -10℃~40℃ |
355nm UV laser has the characteristics of short wavelength and high photon energy. It can directly act on the molecular bonds of materials to achieve efficient breaking of chemical bonds. There is almost no heat effect during the processing, avoiding material deformation, coking or surface damage that may be caused by traditional hot processing methods, and truly achieving cold processing effects. The marking results are delicate, smooth, clear and sharp, which greatly improves the visual effect and process quality of the logo.
M10 desktop ultraviolet laser marking machine uses a high-quality UV laser source (RFH laser, HAN's laser, PulseX laser or Gainlaser) with excellent beam quality and extremely small focused spot, which significantly enhances the fineness and edge clarity of the mark. At the same time, the high-speed scanning system ensures a fast and accurate marking process, greatly improving production efficiency.
M10 desktop ultraviolet laser marking system is equipped with a professional TEYU industrial chiller, which can effectively maintain the ideal operating temperature of the UV laser marking system during long-term operation, avoid performance fluctuations or component damage caused by overheating, and significantly reduce the failure rate. This efficient cooling solution not only ensures the continuous and stable operation of the equipment, but also helps to extend the service life of the entire machine, improve production continuity and processing reliability.

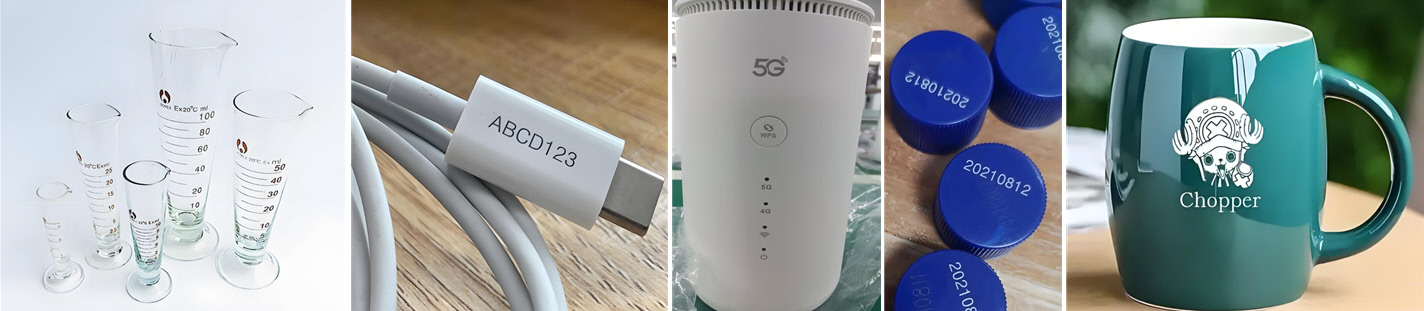

M10 desktop ultraviolet laser marker is particularly suitable for high-end applications with strict requirements on surface accuracy, such as fine marking processing of various materials such as plastics, glass, metal coatings, ceramics and semiconductor silicon wafers. It is an ideal choice for precision manufacturing and high-demand industrial scenarios.
Due to its unique cold processing characteristics, the desktop UV laser marking machine has shown excellent application advantages in many high-precision manufacturing fields. M10 is widely used in electronics, semiconductors, medical devices, precision instruments, packaging and printing and other industries, and is suitable for fine marking and micro-processing of various materials. For example, in the field of electronic products, it can be used for FPC flexible circuit board cutting, chip coding, and mobile phone glass cover marking; in the medical industry, it is suitable for permanent marking of stainless steel instruments without heat damage; in the food and pharmaceutical packaging industry, it can achieve high-speed online coding to avoid contamination risks.
In addition, it can also be used in high-end scenarios such as ceramic substrate engraving, plastic button character engraving, and silicon wafer micro-hole processing. With its ultra-short wavelength and low heat-affected zone, the desktop ultraviolet laser marking machine can achieve ultra-high-precision non-contact processing to meet the needs of modern industry for refined, high-quality and environmentally friendly production.
